18W 100-240V AC E26 adjustable base white color PAR56 aluminum LED
pool light
Product details
1. UL Certified LED PAR56 pool bulb.
2. CD12 Die-cast aluminum material shell, great heat dissipation
through structure.
3. IP68 waterproof led pool light must assemble to IP68
Niche/Housing.
4. Aluminum material +ANTI UV PC cover, no yellowing or dazzling
for two years.
5. Adjustable height patented design, PAR56 bulb can perfectly
match with the niches of Pentair, Jandy, Hayward, etc.
Product Features
1. Waterproof spot light for swimming pool with 316 stainless steel
screw assembly.
2. Anti-UV transparent PC cover, won't turn yellow within 2 years.
3. Constant current driver, comply with CE & EMC standard.
4. PC material with bracket lens, high temperature and heat
resistance
5. Nickel-plated copper terminal block, E26 connector/GX16D
Connector.
6. 2-3MM aluminum light board for excellent heat dissipation,
2.0W/(m.k) Thermal conductivity.
Specification
| HG-P56-18W-B(E26-H)-UL |
| Lamp paramater | Material | Aluminum+Anti UV PC cover |
| Light dimension | Φ165×125-138mm |
| Input voltage | AC100-240V |
| Wattage | 18W±10％ |
| Light lumen | 1400LM±10％ |
| Halogen replacement | 120W |
| Beam angle | 120° |
| BASE | E26 |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | UL,CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 3 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 62 | 65 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. waterproof floating pool lights Must be 8 hours aging test.
3. led bulb swimming pool finished products all passed 30 steps quality inspection
4. Good looking stamping SS316 rivet screws, more stable ,never
fall off
5. Good looking with rivet screw and cover nut assembly,longer
lifespan.
6. IP68 structure waterproof, can long time use underwater.

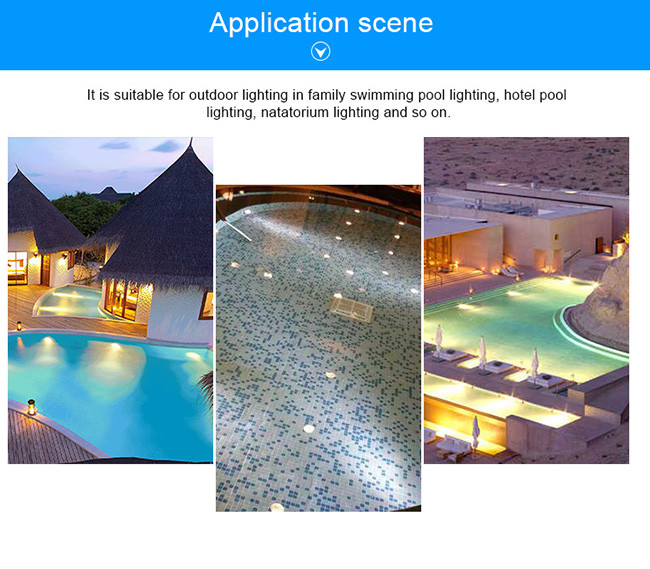

Application
led salt water pool light application: Concrete pool ,Vinyl pool
,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.
led salt water pool light construction drawing
Packing List
| Item | HG-P56-18W-B(E26-H) LED pool lighting |
| Product weight | 800G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 26.8KG |
