Product details
1. Nylon+fiber plastic,good anti-aging ability.
2. IP Rate: IP68 Structural waterproof.
3. Engineering ABS material+ANTI UV PC cover, no yellowing or
dazzling for two years.
4. RGB Switch control and synchronous control are the best selling
control in Heguang.
5. Waterproof cable, better waterproof and anti-corrosion.
Product Features
1. 8mm thickness bracket with screws fixation at 2 end, more
fastness.
2. Back cover with SS316L material, better heat
dissipation/anti-corrosion/anti-aging ability.
3. Transparent anti-UV PC cover, color no fading in 2 years.
4. VED standard waterproof cable, better waterproof and anti-aging
ability with pure copper wire.
5. High tension waterproof silicone ring.
Specification

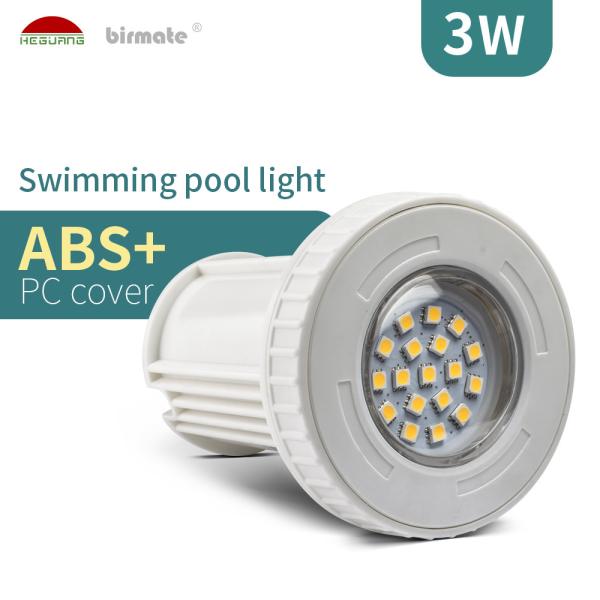

| HG-PL-3W-C1 |
| Lamp parameter | Material | Plastic + Transparent PC cover |
| Light dimension | Φ103×136mm |
| Input voltage | AC12/DC12V |
| Wattage | 3±1W |
| Light lumen | 180LM±10％ |
| Halogen replacement | 15W |
| Beam angle | 120° |
| BASE | two screws terminal |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 63 | 72 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. light led underwater Must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection
4. Good looking stamping SS316 rivet screws, more stable, never
fall off.
5. Good looking with rivet screw and cover nut assembly,longer
lifespan.
6. IP68 structure waterproof, can long time use underwater.
Application

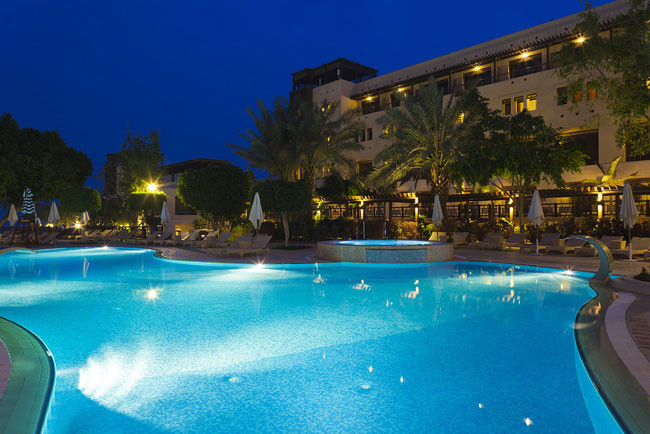

Surface mounted pool lights application :Concrete pool ,Vinyl pool
,Outdoor Swimming Pool ,family pool,
hotel pool ,underwater etc.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us directly or leave us the messge ,we will give
priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get
them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control
,external control ,wifi control ,DMX512 control,etc.
