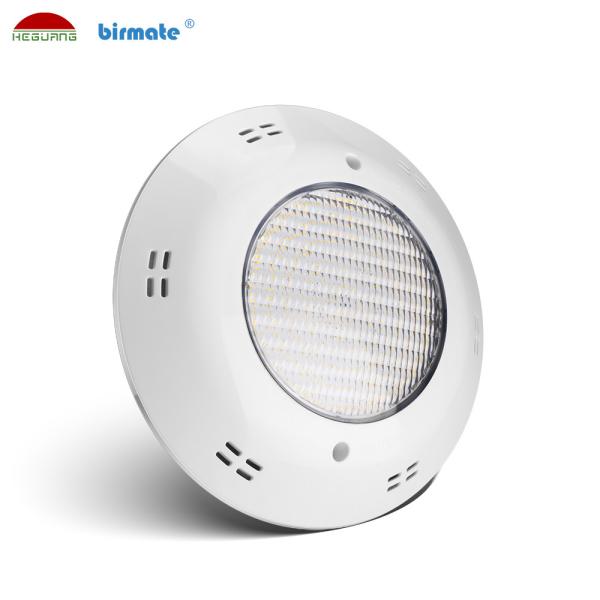

High Power 30W SMD Surface Mount Pool Bulb, IP68 Outdoor Spotlight
Lights
Product details
1. Environmental ABS material shell, 7 colors for optional.
2. 316L Stainless steel material base shell, great heat-dissipation
and corrosion-resistant.
3. IP68 Structure waterproof, without resin-filled.
4. IP68 led pool lighting completely replace traditional pool
lights and modern pool lights.
5. IP Rate: IP68 Structural waterproof.
Product Features
1. Pool lighting wall mounted with VED standard waterproof cable
,pure copper wire.
2. Constant current power supply drive,EMC anti-interference
circuit
3. PC material LED lens with bracket,high heat resistance
4. QC led surface mounted pool lights with Nylon+fiber plastic back
cover,good toughness and anti-aging ability;
5. 8mm thickness bracket with screws fixation at 2 end,more
fastness.
6. High bright and energy saving imported LED chips,low light
decay.
Specification
| HG-PL-30W-C2-SMD |
| Lamp paramater | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×49.5mm |
| Input voltage | AC12/DC12V |
| Wattage | 30W±10％ |
| Light lumen | 2500LM±10％ |
| Halogen replacement | 230W |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 70 | 73 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. LED surface mounted pool must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection.
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Surface mounted pool lights application :Concrete pool ,Vinyl pool
,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.
Packing List
| Item | HG-PL-30W-C2-SMD |
| Product weight | 1350G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 26.8KG |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
