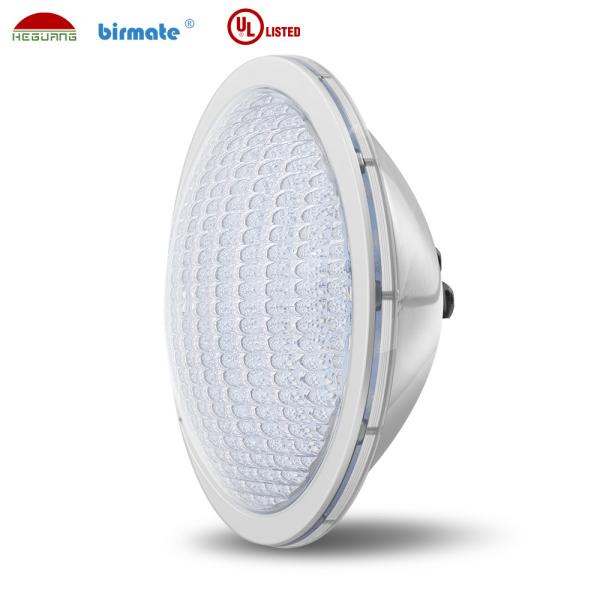

20W IP68 316L Stainless Steel 6500K Swimming Pool Ground Underwater
Led Lights Boat
Product Quick detail
1. Constant current driver, comply with CE & EMC standard.
2. Led underwater light for swimming pool Connected 2 screw
terminals, never loose.
3. The lens with PC material bracket, high-temperature resistance,
and better light concentration
4. 2-3MM aluminum light board for excellent heat dissipation,
2.0W/(m.k) Thermal conductivity.
5. 3 Years warranty.
Product features
1. High-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate.
2. IP68 Structural waterproof,no yellowing or dazzling for two
years
3. swimming pool pump finished product passed 30 steps quality
inspection
4. 90% Transparent PC cover, light transmittance ＞90%.
5. All products succeeded in 10m deep water testing before
delivery.
6. 8 hours aging testing, 30 steps quality inspections, assure the
great quality pool light.
Specification
| HG-P56-20W-C-UL |
| Lamp paramater | Material | SS316L + Anti-UV PC cover |
| Light dimension | Φ177×102mm |
| Input voltage | AC12/DC12V |
| Wattage | 21W±10％ |
| Light lumen | 1800LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | two screws terminal |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | UL,CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 3 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 67 | 70 |
Advantage
1. Underwater led lights boat thru hull feature diameter is about
177mm,can totally meet various PAR56
housing/niche:Pentair,Austra,Hayward, etc.
2. IP68 structure waterproof ,whithout glue filled, no color
temperature fading.
3. Constant current power supply driver, EMC anti-interference
circuit.
4. IP68 underwater pool light assembly with SS316 screws,more
durable.
5. PC material LED lens with bracket, high heat resistance.
All passed 30 steps quality control , 100% waterproof at 10m depth
,8 hours LED agening test,
100% inspection before deliver.

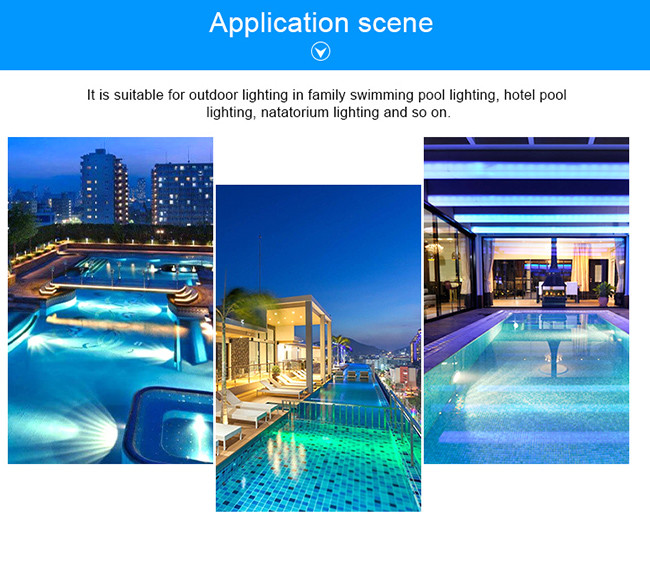

Application
HG-P56-20W-C-UL led pool lighting widely use in concrete pool ,
vinyl pool, the lamp size can totally match various Germany and US
PAR56 housing/niches.
Connection Single Color
Packing List
| Item | HG-P56-20W-C-UL LED pool lighting |
| Product weight | 950G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 20.6Kg |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices, please call us or tell us in your
email so that we will give priority to your inquiry .
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ,the more you order,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention.
It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
