Warm White Par56 LED Swimming Pool Lights 18W 177x95mm Anti UV PC
Cover Material
Product Quick detail
1. All products provide 2 year warranty.
2. Led lights for pool are environmentally friendly plastic case.
3. Underwater led pool light use Engieering ABS material +anti UV
PC cover.
4. Led Color and Color temperature: Pure White: 6500K±10% Warm
White:3000K±10% costomized.
5. IP68 led pool light use SMD5050 high bright LED chip, can
choose white/blue/green.etc.
Product features
1. Multiple wattage options from 12W-70W.
2. Underwater small led lights passed 8 hours LED agening test.
3. IP68 Structural waterproof,no yellowing or dazzling for two
years.
4. Pool underwater led light is 100% water tested at a depth of
10m, with reliable performance.
5. High-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate.
Specification
| HG-P56-18W-A |
| Lamp paramater | Material | Engineering ABS + Anti-UV PC cover |
| Light dimension | Φ177×95mm |
| Input voltage | AC12/DC12V |
| Wattage | 18W±10％ |
| Light lumen | 1700LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | WIRE OUT |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| test Site | LED PAR56 swimming pool lights (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 56 | 61 | 69 | 71 | 62 | 67 | 73 | 75 |
Size
Advantage
1. Swimmingpool led light underwater get UL certification.
2. Fully compatible with PAR56 swimming pool lighting.
3. Solar underwater pool led lights Match G53 pins.
4. IP68 Structural waterproof.No change color temperature .
5. Reliable performance with 100% water tested at a depth of 10m.
6. High-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate
LED pool light all passed 30 steps quality control, 100% waterproof
at 10m depth,
8 hours LED agening test,100% inspection before deliver.

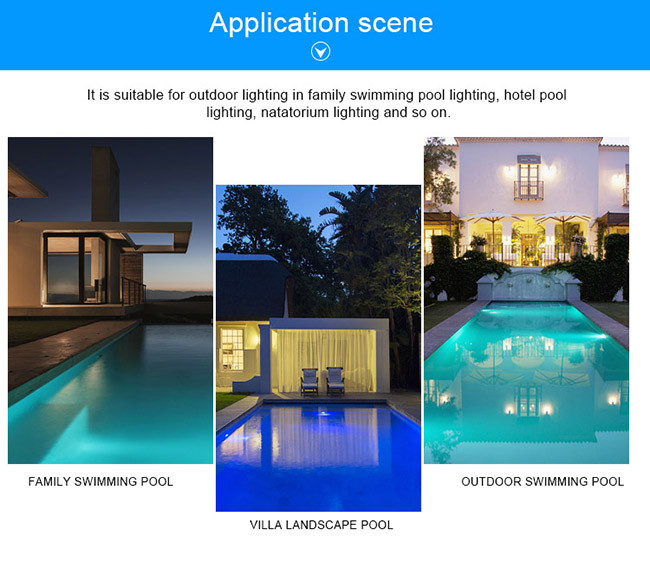

Application
Pure white led pool light Widely used in swimming pools,Plastic
film pools, glass fiber pools,.
Bath pools, hot spring pools and other underwater lighting.

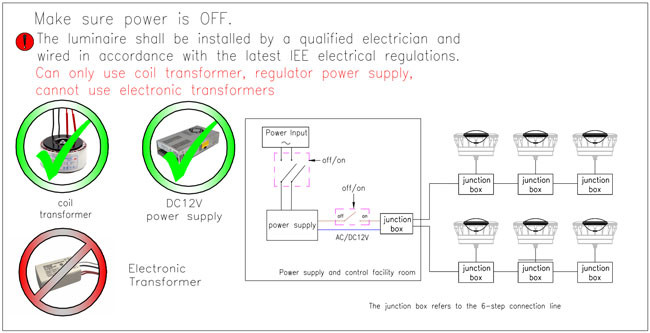

Connection
Packing
| Packing/ Shipping | Lamp sizeInner box dimension | 185×185×118 mm | | N.W. / pc | 1150g | | G.W. / pc | 1350g | | Carton dimension | 630×410×410 mm | | Qty. / ctn. | 20PCS/Canton | | G.W. / ctn. | 28.2Kg |
|
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center temperature at the LED bottom of
light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
