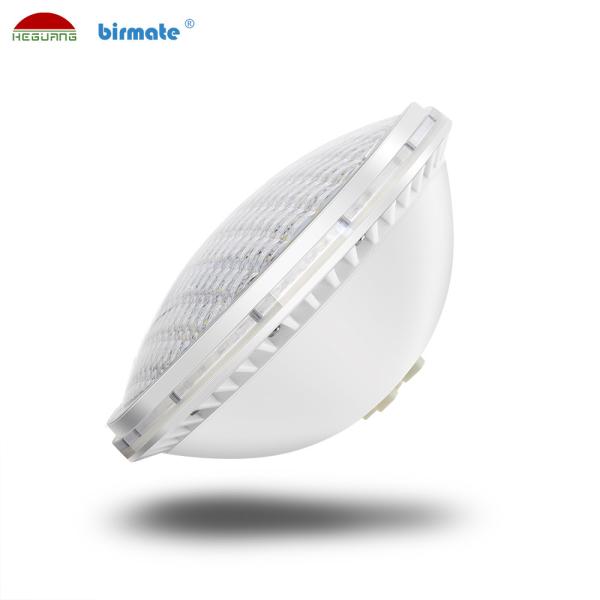

Anti-UV ABS 18w Par 56 LED Pool Light, 12 Volt LED Swimming Pool
Light
Product Quick detail
1. IP Rate: IP68 Structural waterproof.
2. Private Mode products, Support ODM&OEM.
3. Color options: Red/Green/Blue/White/RGB
4. Multiple wattage options from 12W-70W.
5. Material: Plastic light body + PC cover, use sealing ring for
better waterproof, anti-corrosion, anti-breakable.
Products Parameters
| HG-P56-18W-A-UL |
| Lamp paramater | Material | Engineering ABS + Anti-UV PC cover |
| Light dimension | Φ177×95mm |
| Input voltage | AC12/DC12V |
| Wattage | 18W±10％ |
| Light lumen | 1700LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | WIRE OUT |
| CCT | Pure White: 6500±10% |
| Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| test Site | LED PAR56 swimming pool lights (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 56 | 61 | 69 | 71 | 62 | 67 | 73 | 75 |
Dimension
Product features
1. Multiple wattage options from 12W-70W.
2. Led light for swimming pools get UL certification.
3. Environmental protection ABS plastic lamp cup.
4. UV-PC transparent bead cover, no yellowing or dazzling for two
years.
5. Solar pool light using Epistar chip lamp beads, high cost
performance.
6. Hayward pool light Can replace traditional halogen lamps, fully
matching the conventional PAR56 lamps in the market.
Advantage
1. Pool floating ball light get UL certification.
2. Fully compatible with PAR56 swimming pool lighting.
3. Swimming pool fiber optic lighting match G53 pins.
4. IP68 Structural waterproof.No change color temperature .
5. Reliable performance with 100% water tested at a depth of 10m.
All passed 30 steps quality control , 100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
solar swimming pool light widely used in swimming pools,Plastic
film pools, glass fiber pools,
Bath pools, hot spring pools and other underwater lighting.
Package
| Packing/ Shipping | Lamp sizeInner box dimension | 185×185×118 mm |
| N.W. / pc | 1150g |
| G.W. / pc | 1350g |
| Carton dimension | 630×410×410 mm |
| Qty. / ctn. | 20PCS/Canton |
| G.W. / ctn. | 28.2Kg |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
UV-PC transparent bead cover, no yellowing or dazzling for two
years.
