430LM Colour Changing Swimming Pool Lights High Brightness 120W
Halogen Replacement
Product Quick detail
1. Working Voltage:AC12V.
2. IP Rate: IP68 Structural waterproof.
3. Multiple wattage options from 12W-70W.
4.Underwater led dock light Shinning angle:120°.
5. Engineering ABS material, multiple color for option.
6. RGB Switch control and synchronous control are the best selling
control in Heguang.
Specifications
| HG-P56-18W-A2-RGB-T |
| Lamp paramater | Material | Nylon+Anti-UV PC cover |
| Light dimension | Φ177×58mm |
| Input voltage | AC12V |
| Wattage | 17W±10％ |
| Light lumen | 520LM±10％ |
| Beam angle | 120° |
| BASE | WIRE OUT |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220 coil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 64 | 70 |
Product features
1. Full inspection and shipment of finished products.
2. 90% Transparent PC cover , light transmittance ＞90%
3. Engineering ABS material with bracket lens, high temperature and
heat resistance.
4. Underwater led lights is 100% water tested at a depth of 10m,
with reliable performance.
5. High-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate.
Dimension
Advantage
1. High Power high bright LED chip.
2. Weather resistance, aging resistance.
3. Light underwater get UL approval for some models.
4. Multiple wattage options from 12W-70W.
5. Submersible underwater marine lights need to test 8 hours LED
agening test.
6. Boat lights Finished product passed 30 steps quality
inspection.
HG Swimming pool lights all passed 30 steps quality control , 100%
waterproof at 10m depth
8 hours LED agening test,100% inspection before deliver.
Application
ABS Swimming pool lights widely used in swimming pools ,Plastic
film pools, glass fiber pools,
Bath pools, hot spring pools and other underwater lighting.

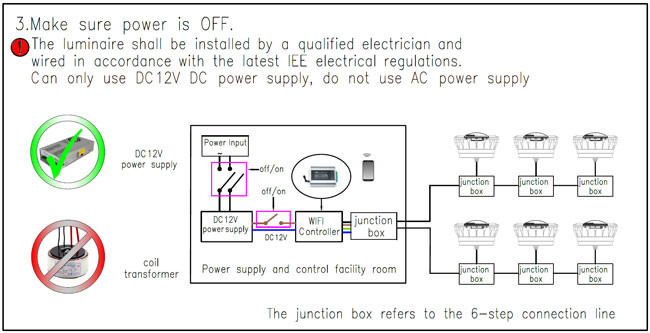

RGB WIFI Controller
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us in your email so that we will give
priority to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: One piece is OK. Because any order is from sample.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
