DC24V Wateroof IP68 SS316L Aquare Led Fountain Lights Underwater
18W DMX512 RGB Control
Product details
1. VDE standard rubber thread, voltage resistant 2000V, temperature
resistant -40℃-90℃
2. Nickel-plated copper waterproof connector, great corrosion
resistance.
3. Lens is integrated structure, protected against falling off.
4. RGB external control and DMX512 control are the best selling
control in Heguang.
5. IP Rate: IP68 Structural waterproof.
Product Features
1. High efficient structural heat dissipation, assure lamp stable
working.
2. Lamp succeeded in the IES and Temperature rise test
3. Constant current driver, comply with CE & EMC standard.
4. Integrated bead lens with uniform lighting ,no dazzling,light
transmittance ＞85%.
5. Fountain lighting ip 68 with IP68 VDE standard cable,pure copper
wire.
6. High quality wafer chip Low light decay / long life / low energy
consumption.
Specification
| HG-FTN-18W-B1-RGB-D |
| Lamp paramater | Material | 316L Stainless steel + Tempered glass(IK10) |
| Light dimension | Φ210×75mm,nozzle hole-50mm |
| Input voltage | DC24V |
| Wattage | 17±10% |
| Light lumen | 600LM±10％ |
| Halogen replacement | / |
| Beam angle | 30°/45°/60° |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| Connect our RGB DMX512Controller | Input Voltage | DC24V coil transformer |
|
| Wattage | 1.5W |
| cable | 5wire |
| Control way | DMX512 control effect |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 48 | 63 |
Dimension

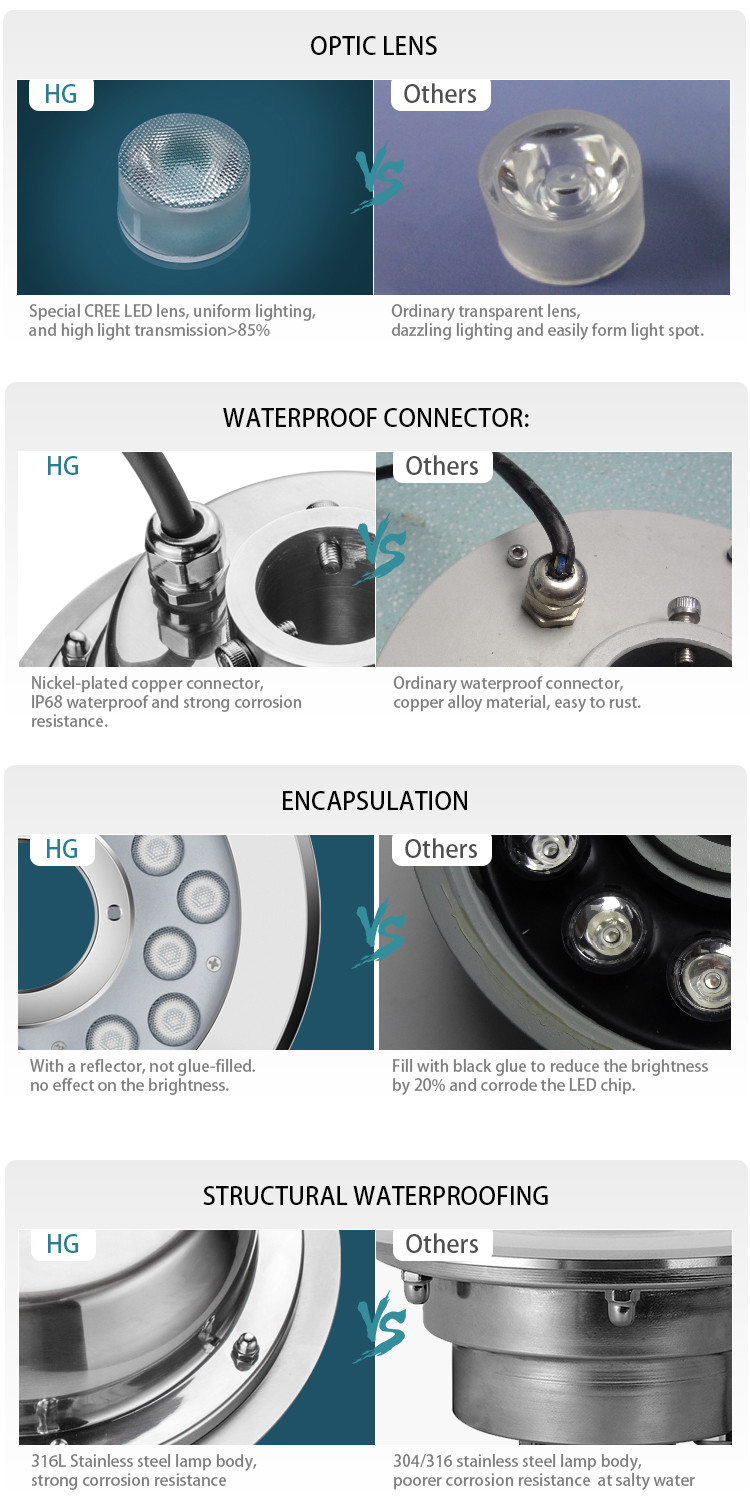

Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Water dance light fountain must be 8 hours aging test and
provide 2 Years warranty.
3. Finished products all passed 30 steps quality inspection.
4. Good looking stamping SS316 rivet screws,more stable, never fall
off
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. Fountain pool lights pump are IP68 structure waterproof, can
long time use underwater.

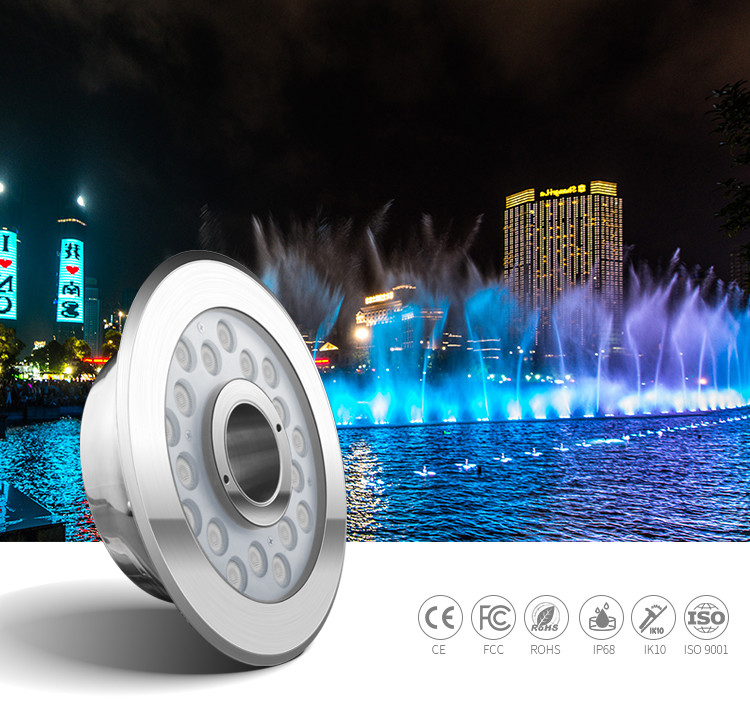

Application
Widely used as square fountains, garden fountains, rockery
fountains, artificial waterfalls and other underwater lighting.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us in your email so that we will give
priority to your inquiry.
2, Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3, Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4, Q: What is the MOQ?
A: One piece is OK. Because any order is from sample.
5, Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
