High Lumens Switch Control 18X3W IP68 RGB waterproof pool lights
bulb for Swimming pool
Product details
1. Working Voltage:Must use AC12V coil transformer.
2. High light LED Chips, low light degradation and long lifespan,
CRI>80.
3. IP68 Structure waterproof, without resin-filled.
4. VDE standard rubber wire, connected with IP68 nickel-plated
copper connector.
5. RGB Switch control and synchronous control are the best selling
control in Heguang.
Specification
| HG-PL-18X3W-V1-RGB-T/HG-P56-18X3W-V1-RGB-K |
| Lamp paramater | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×150.6mm |
| Input voltage | AC12 |
| Wattage | 24W±10％ |
| Light lumen | 1200LM±10％ |
| Halogen replacement | / |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 73 | 73 |
Product Features
1. 8 hours aging testing, 30 steps quality inspections, assure the
great quality pool light.
2. LED linear light for swimming pool with transparent PC cover
,uniform lighting no dazzing.
3. Constant current power driver,EMC anti-interference circuit.
4. Nickel plated brass PG7 connector,good waterproof and
anti-corrosion.
5. Swimming pool light fixture are structure waterproof without
glue ,color changing ＜3%.
Installation
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Underwater swimming pool light must be 8 hours aging test.
3. Pool light Vinyl IP68 Finished products all passed 30 steps
quality inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.

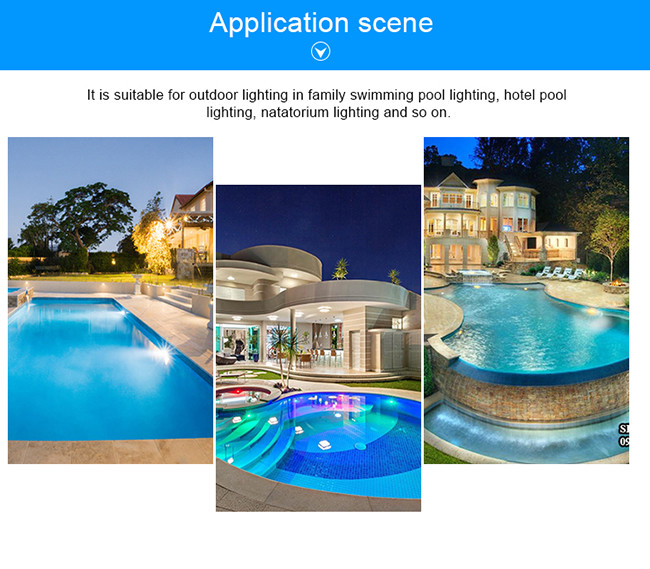

Application
Led Vinyl Pool Lights widely used for underwater lighting in film
pools, hot spring pools, garden pools, etc.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If
you are urgent to get the prices,
please call us or tell us in your email so that we will give
priority to your inquiry.
2, Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3, Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of the sample is the same as a normal order and can
be ready in 3-5 days.
4, Q: What is the MOQ?
A: One piece is OK. Because any order is from the sample.
5, Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
