High Brightness 12V Swimming Pool Lights, IP68 Outdoor Inground Led
Light Swimming Pool
Product details
1. Constant current driver, comply with CE & EMC standard.

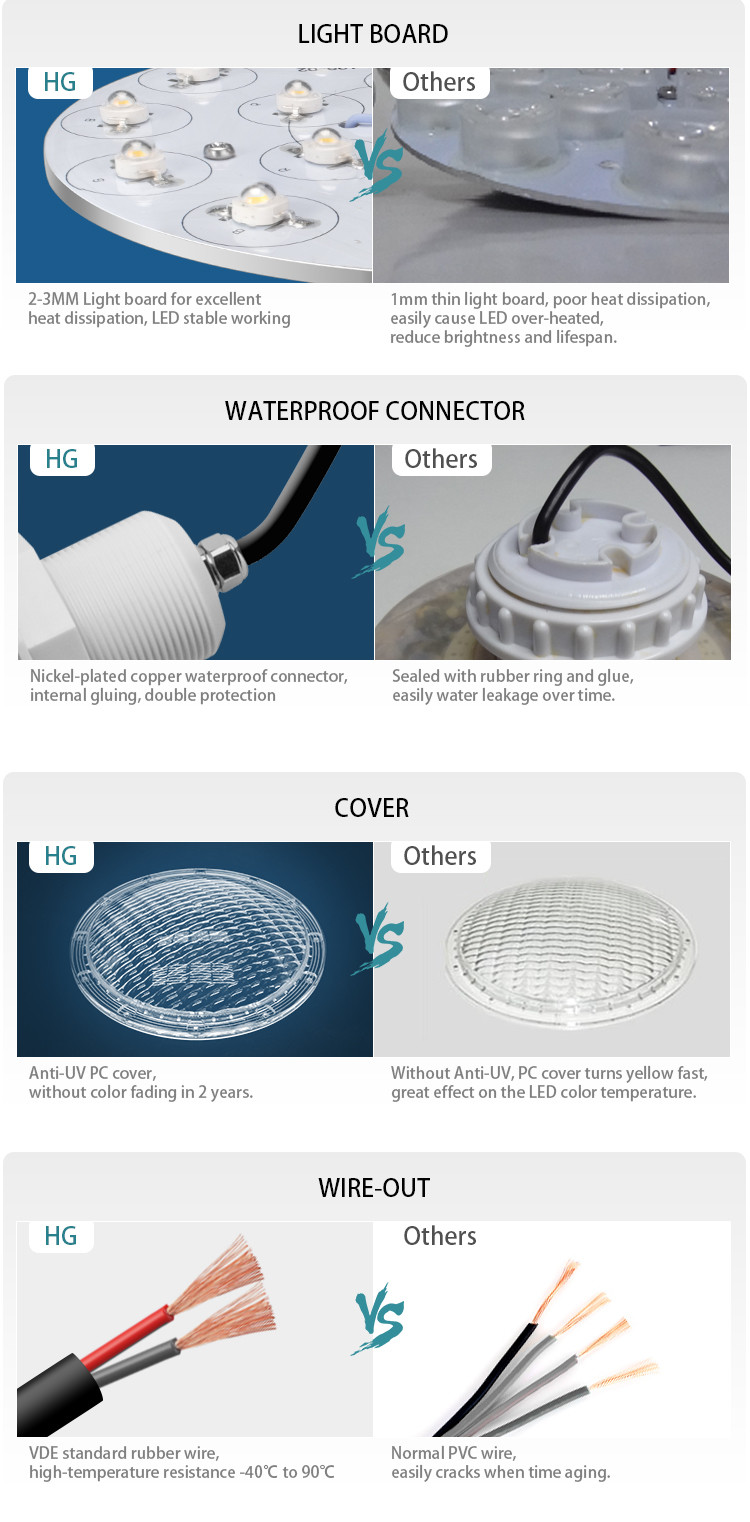

2. 2-3MM aluminum light board for excellent heat dissipation,
2.0W/(m.k) Thermal conductivity.
3. Swimming pool underwater led light must use AC12V coil
transformer.
4. IP Rate: IP68 Structural waterproof.
5. Above ground swimming pool completely replace traditional pool lights and modern pool lights.
Product Features
1. Nylon plus fiber plastic lamp body shell, PC transparent cover,
uniform lighting no dazzing.
2. VED standard waterproof cable, better waterproof and anti-aging
ability with pure copper wire.
3. Anti-UV PC cover, excellent yellowing resistance, and durable
4. Environmental ABS material shell
5. IP68 Structure waterproof, without resin-filled.
6. White PC back cover ,High tension waterproof silicone ring.
Specification
| HG-PL-18X1W-V-T |
| Lamp paramater | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×150.6mm |
| Input voltage | AC12 |
| Wattage | 18W±10％ |
| Light lumen | 630LM±10％ |
| Halogen replacement | / |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 73 | 73 |
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Light led swimming pool Must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
6. 316L stainless steel lamp cup, stronger corrosion resistance,
Application
Led Vinyl Pool Lights widely used for underwater lighting in film
pools, hot spring pools, garden pools, etc.

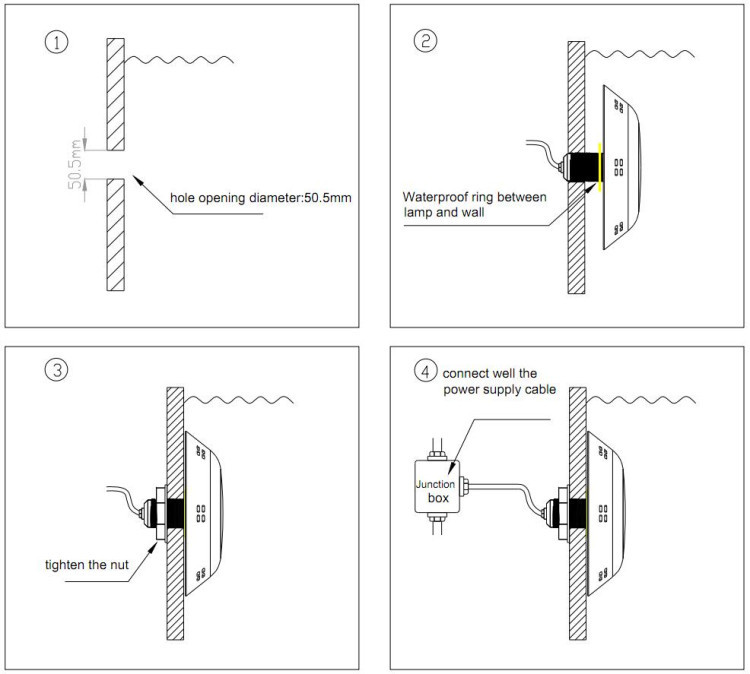

Installtion
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If
you are urgent to get the prices,
please call us or tell us in your email so that we will give
priority to your inquiry.
2, Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3, Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of the sample is the same as a normal order and can
be ready in 3-5 days.
4, Q: What is the MOQ?
A: One piece is OK. Because any order is from the sample.
5, Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
