192W maximum output power DC12V LED RGBW external panel for LED
pool light
Product details

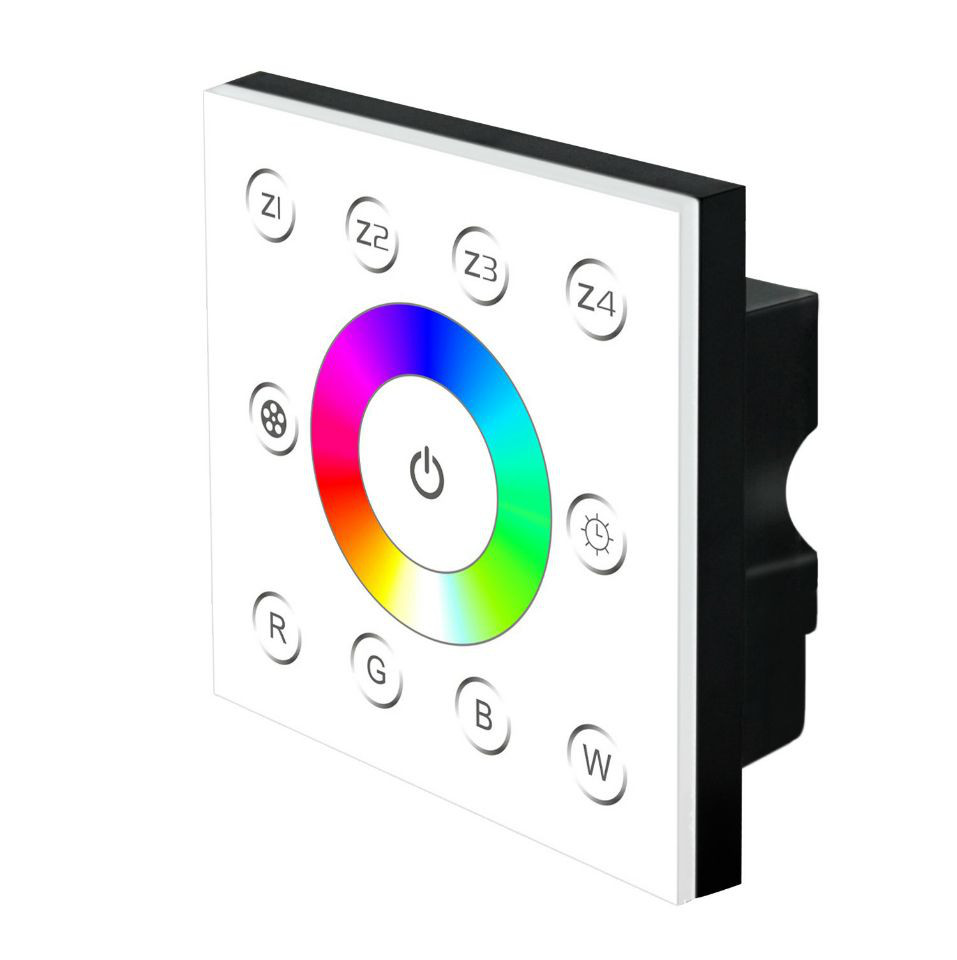

1. RGB led controller Material: engieering ABS environmental
protection plastic bottom case, color ring touch control panel
button.
2. Simple installation: The common base of the power switch is
compatible with installation.
3. Mini light controler rgb Control mode: DMX512 (1990) international standard protocol signal
output, fully compatible with DMX512-RGBW control lamps.
4. Change mode: there are 10 change modes (the mode is fixed and
cannot be edited).
5. Distance: Connection controller 30 meters from the lamp.
6. DMX512 touch control panel design, divided into four areas to
control each other without affecting each other.
7. RGB led strings dmx controlled Use voltage range AC85-265V.
8. RGB led light controled CE, RoHS certification.
Specifications
| HG-P4 | | 1 | Control | RGB Panel (4 wires pool light) | | 2 | Input Voltage | DC 12V~24V | | 3 | Cable | 4 wires | | 4 | Load current | 4Ax4CH (Max 16A) | | 5 | Max Power | 192W / 384W (12V/24V) | | 6 | Light Dimension | L86XW86XH36mm | | 7 | G.W./pc | 190g | | 8 | Working temperature | -20~50° | | 9 | Certificate | CE, ROHS,FCC | | 10 | Applicable | RGB 4 wires swimming pool light (No controller) |
|
Dimension
Connection
Note
1. Please read this specification carefully before using this
product.
2. Before installing or uninstalling, the corresponding power must
be cut off.
2. Please check whether the power supply voltage used meets the
product voltage range requirements.
3. The control panel cannot be waterproof. It needs to avoid
sunlight and rain. If it is installed outdoors, please take
waterproof measures.
5. The power supply used must meet the load rating requirements of
the luminaire and ensure that the wiring is firm to prevent
excessive wires or poor contact from triggering the accident.
6. Before commissioning, ensure that all wiring is correct and that
the lamp is damaged due to incorrect wiring
