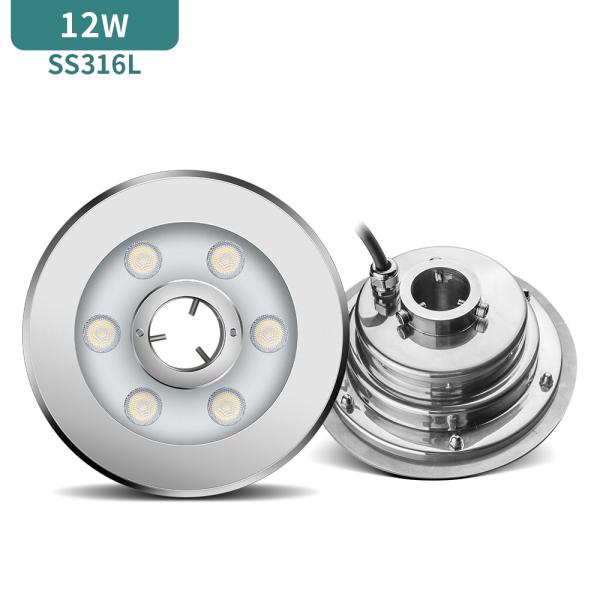

● SS316L body material,surface ring thickness: 3 mm；
● Transparent tempered glass,thickness :8.0mm；
● Nozzle diameter max: 32mm；
● VDE rubber cable ,cable length : 1M;
● IP68 structure waterproof;
● PCB board with high thermal conductivity,
thermal conductivity ≥2.0w/mk.
● Constant current driver circuit design, DC24V input voltage；
● SMD3535 CREE chip,white/warm white/red/blue/red etc.
● Beam angle: 15°/30°/45°/60°;
● 2 Years warranty
Specification
| HG-FTN-12W-B1 |
| Lamp parameter | Material | 316L Stainless steel+Tempered glass(IK10) |
| Light dimension | 170×65 mm,nozzle hole-32mm |
| Input voltage | DC24V |
| Wattage | 12±1W |
| Light lumen | 950LM±10％ |
| Beam angle | 30°/45°/60° |
| CCT | 3000K±10％, 4300K±10％, 6500K±10％ |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,IK10,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 40 | 54 |
Water led light fountains widely used as square fountains, garden
fountains, rockery fountains, artificial
waterfalls and other underwater lighting.
FAQ :
1.How to get a sample?
-Based on the value of our products, we do not supply free sample,
if you need a sample for testing,
please kindly contact our sales for more details.
2.How long to deliver the products?
-The exact delivery date need to according to your model and
quantity. Usually within 5-7 working
days for sample after receive the payment and 15-20 working days
for mass production.
3.Do you offer guarantee for the products?
-Yes, we offer 2 years warranty our products, several item can be 3
years with extra costs
4.How to deal with the faulty products?
-Firstly, our products are produced in strict quality control
system and the defective rate will be less
than 1%.Secondly, during the guarantee period,we will send new
replacement with new order for small
quantity.. For defective batch products, we will repair them and
resend them to you or we can discuss
the solution including re-call according to real situatio.
