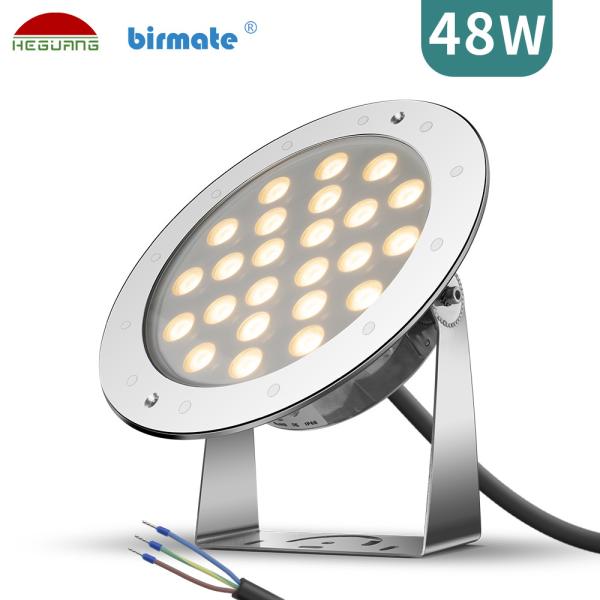

48W SMD3535 white light 24 Volt Low Voltage led Underwater Pond
Light with ERP
Product details
1. LED Color: White/Red/Green/Blue
2. Private Mode products,Support ODM&OEM.
3. SS316L material,lamp body thickness:0.8mm,surface ring
thickness:2.5 mm；
4. Transparent tempered glass,thickness :8.0mm；
5. VDE rubber cable ,cable length :1M
6. IP68 structure waterproof
7. Adjustable lighting angle,anti-loosening device.
8. Bracket fixation,hoop fixation(for option)
9. NO AC voltage,DC24Vstable power supply ONLY
10. Garden pool,square pool,hotel,waterfall,outdoor underwater use
| HG-UL-48W-SMD |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ220×225mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 48W±10% |
| Light lumen | 4000LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
|
| Wave Length (nm) | R: 620-630nm |
| G:515-525nm |
| B:460-470nm |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| packing/ shipping | Lamp sizeInner box dimension | 230×230×118mm |
| N.W. / pc | 2450g |
| G.W. / pc | 2670g |
| Carton dimension | 480×245×500mm |
| Qty. / ctn. | 8PCS/CTN |
| G.W. / ctn. | 22.5Kg |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 55 | 59 | 64 | 70 | 64 | 64 | 70 | 70 |
Product Size
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water
pipe binding installation method, widely used in garden pool,
square pool, hotel pool, fountain
and other underwater lighting.
Packing List
| Item | HG-UL-48W-SMD |
| Product weight | 2450G/PCS |
| color box size | 230×230×118mm |
| Carton/pcs | 10pcs/Carton |
| Carton size | 480×245×500mm |
| Carton weight | 22.5KG/CTN |
