Product Features
1. Use for concrete pool.
2. Material: Engineering ABS shell + Anti-UV PC cover
3. VDE standard rubber thread, length: 2 meters
4. IP68 Structure waterproof, without resin-filled.
5. Pool light 12v has transparent PC cover, uniform lighting no dazzing.
6. High tension waterproof silicone ring.
7. Nylon+fiber plastic back cover, good toughness and anti-aging
ability.
8. Constant driver to make sure LED light working stably, and with
open & short circuit protection.
| HG-PL-18W-C-T |
| Lamp parameter | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×49.5mm |
| Input voltage | AC12V |
| Wattage | 18W±10％ |
| Light lumen | 520LM±10％ |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Wattage | 1.5W |
| cable | 2 wires |
| Control way | synchronous control effect |

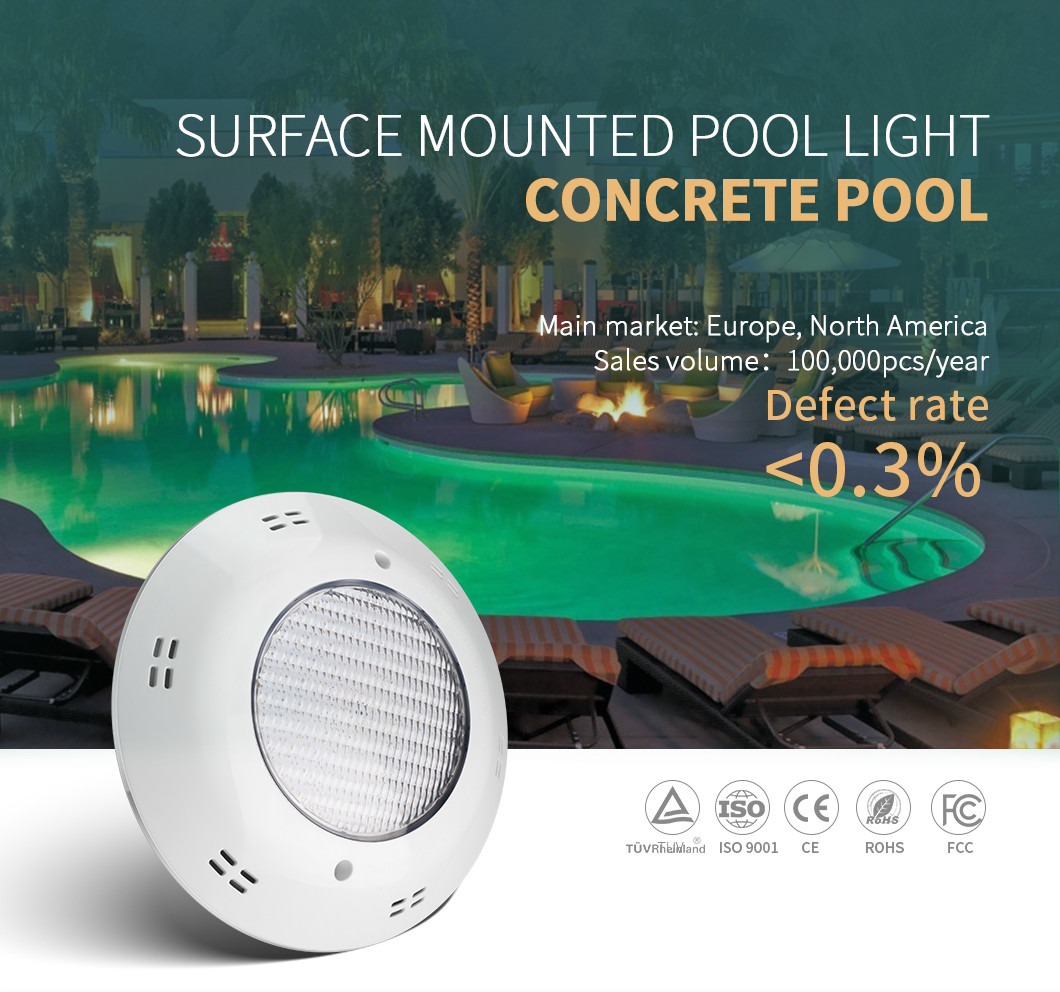

| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 70 | 73 |
Application
Led lighting for the pool application: Concrete pool, Vinyl pool,
Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.
FAQ
1.How to get a sample?
-Based on the value of our products, we do not supply free sample,
if you need a sample for testing,
please kindly contact our sales for more details.
2.How long to deliver the products?
-The exact delivery date need to according to your model and
quantity. Usually within 5-7 working
days for sample after receive the payment and 15-20 working days
for mass production.
3.Do you offer guarantee for the products?
-Yes, we offer 2 years warranty our products, several item can be 3
years with extra costs
4.How to deal with the faulty products?
-Firstly, our products are produced in strict quality control
system and the defective rate will be less
than 1%.Secondly, during the guarantee period,we will send new
replacement with new order for small
quantity.. For defective batch products, we will repair them and
resend them to you or we can discuss
the solution including re-call according to real situatio.
