1. IP68 nickel plated brass connector,better waterproof and
anti-corrosion
2. Environmental ABS material shell, 7 colors for optional.
3. VED standard waterproof cable ,pure copper wire
4. Constant current power supply drive,EMC anti-interference circuit
5. lamp thickness 49.5mm
6. IP68 Structure waterproof, without resin-filled.

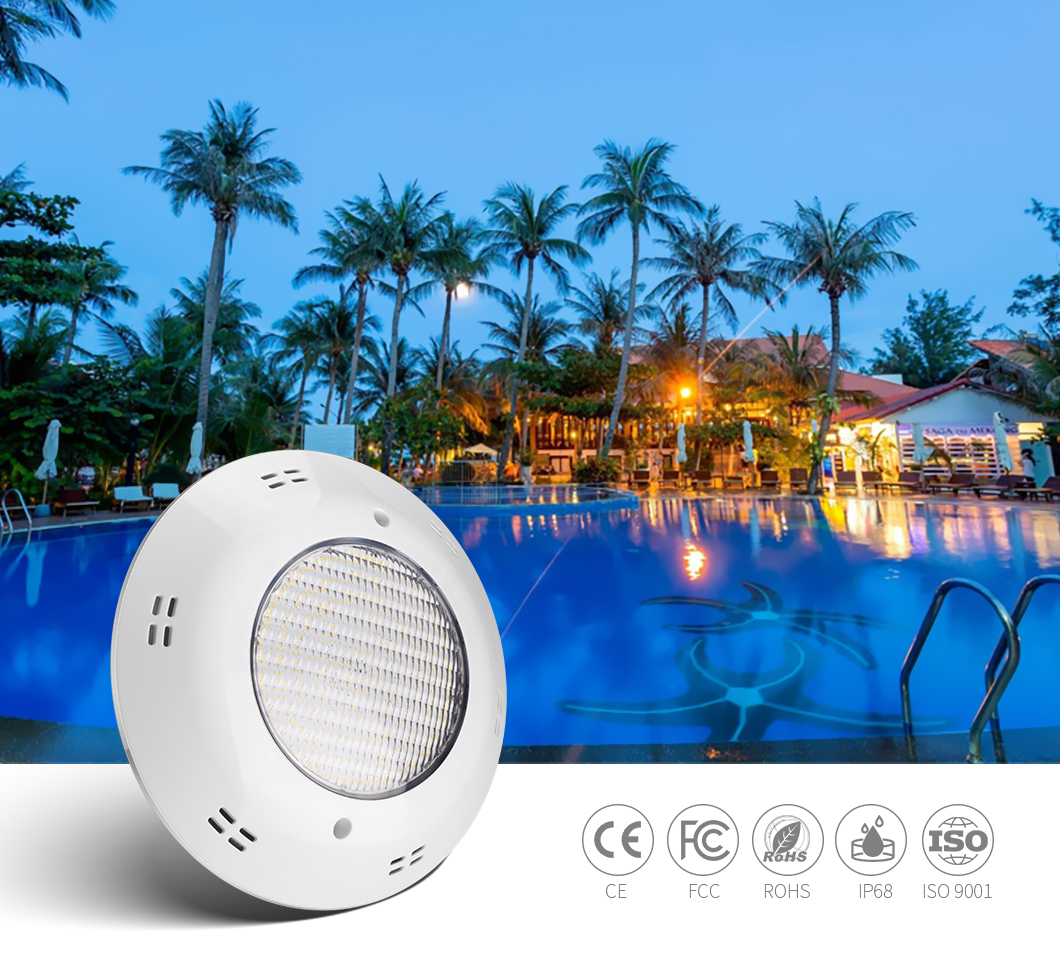

7. Pool light 12v has transparent PC cover, uniform lighting no dazzing.
8. High tension waterproof silicone ring.
9. Nylon+fiber plastic back cover, good toughness and anti-aging
ability.
10. 8mm thickness bracket with screws fixation at 2 end, more
fastness.
1. IP68 Structure waterproof, without resin-filled.
2. Pool light 12v has transparent PC cover, uniform lighting no dazzing.
3. High tension waterproof silicone ring.
4. Nylon+fiber plastic back cover, good toughness and anti-aging
ability.
5. 8mm thickness bracket with screws fixation at 2 end, more
fastness.
Specification
| HG-PL-18W-C1 |
| Lamp parameter | Material | Engineering ABS shell + Anti-UV PC cover |
| Light dimension | Φ290×49.5mm |
| Input voltage | AC/DC12V |
| Wattage | 18W±10％ |
| Light lumen | 1800LM±10％ |
| Beam angle | 120° |
| BASE | Wire out |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | FCC,CE, RoHS,IP68 |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 70 | 73 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Color logic pool light Must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection.
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Led lighting for the pool application: Concrete pool, Vinyl pool,
Outdoor Swimming Pool ,family pool,hotel
pool ,underwater etc.
Why Choose Us
1.Heguang with 15 years experience specialized in LED pool
light/IP68 underwater lights
2.Professional R&D team,Patent design with private mold,
structure waterproof technology instead of glue filled
3.Experienced in different OEM/ODM project, artwork design for free
4.Strict quality control : 30 Steps inspection before
shipment,reject ratio ≤0.3%
5.Quick response to the complains ,worry-free after-sale service
6.The only one China pool light supplier who listed in UL (for US
and Canada)
