Brand Name : | birmate |
Model Number : | HG-PL-18W-C1 |
Certification : | FCC,CE, RoHS,IP68 |
Price : | negotiation |
Payment Terms : | Paypal,L/C,T/T,etc. |
Supply Ability : | 50000 pcs per month |
Delivery Time : | 5-7 working days |

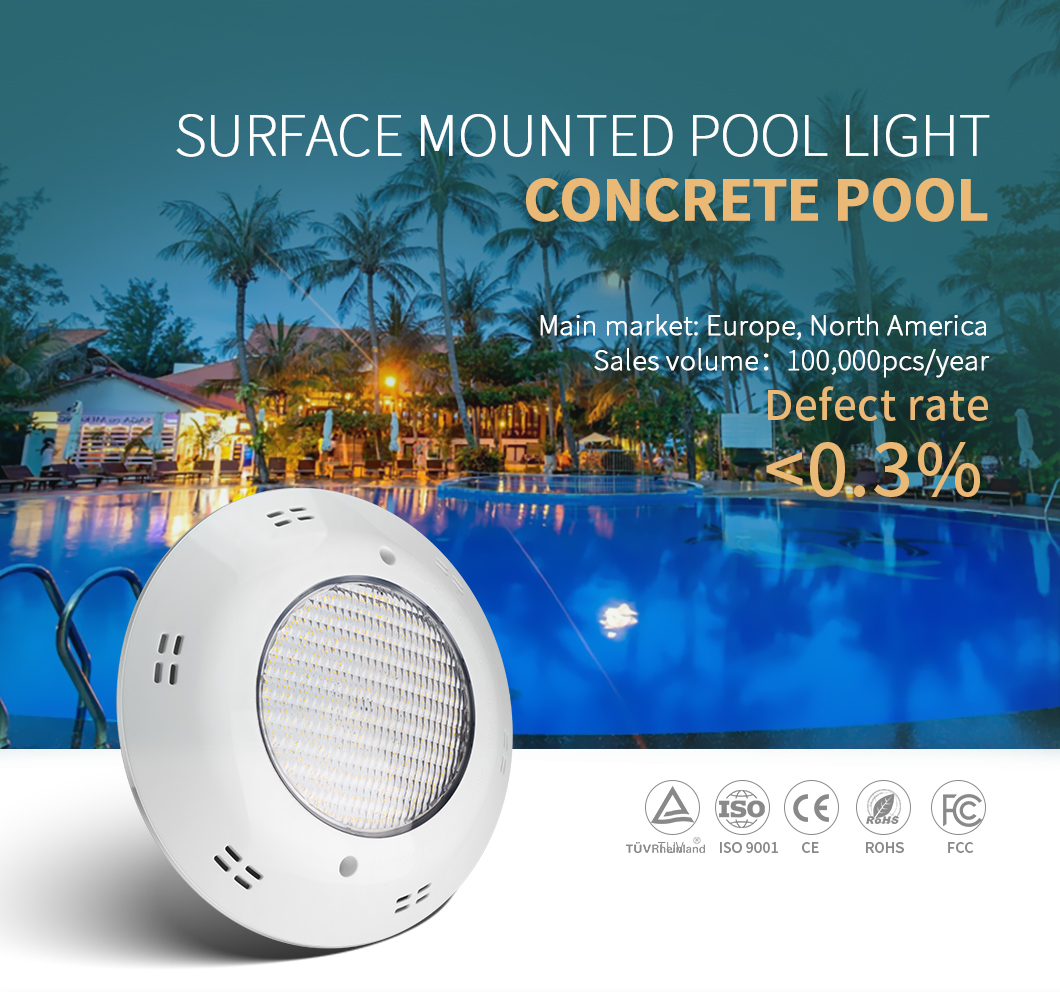

18W SMD2835 1800LM IP68 Structure waterproof Led Concrete swimming Pool Light
1. IP68 nickel plated brass connector,better waterproof and anti-corrosion
2. Environmental ABS material shell, 7 colors for optional.
3. VED standard waterproof cable ,pure copper wire
4. Constant current power supply drive,EMC anti-interference circuit
5. IP68 Structure waterproof, without resin-filled.
6. Pool light 12v has transparent PC cover, uniform lighting no dazzing.
7. 8mm thickness bracket with screws fixation at 2 end, more fastness.
Specification
HG-PL-18W-C1 | ||||||||
Lamp paramater | Material | Engineering ABS shell + Anti-UV PC cover | ||||||
Light dimension | Φ290×49.5mm | |||||||
Input voltage | AC/DC12V | |||||||
Wattage | 18W±10% | |||||||
Light lumen | 1800LM±10% | |||||||
Beam angle | 120° | |||||||
BASE | Wire out | |||||||
Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
IP Rating | IP68 | |||||||
Certificate | FCC,CE, RoHS,IP68 | |||||||
Life-span | 50,000 hours | |||||||
Warranty | 2 Years | |||||||
!!! Remarks | Connect coil transformer | must be coil transformer | ||||||
Waterproof ring of housing | must do right to get IP68 | |||||||
Test position | LED Surface Mounted Swimming Pool Light(Min) | |||||||
Working temperature 28℃ | Working temperature 40℃ | |||||||
Underwater test time(Min) | 480 | 480 | ||||||
LED edge temperature(℃) | 70 | 73 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Color logic pool light Must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection.
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Led lighting for the pool application: Concrete pool, Vinyl pool, Outdoor Swimming
Pool ,family pool,hotel pool ,underwater etc.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us directly or leave us the messge ,we will give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable.
6.Q: what's the RGB control you have?
A: Patent design RGB 100% synchronous control,switch control ,external control ,wifi control ,
DMX512 control,etc.
![]() |
