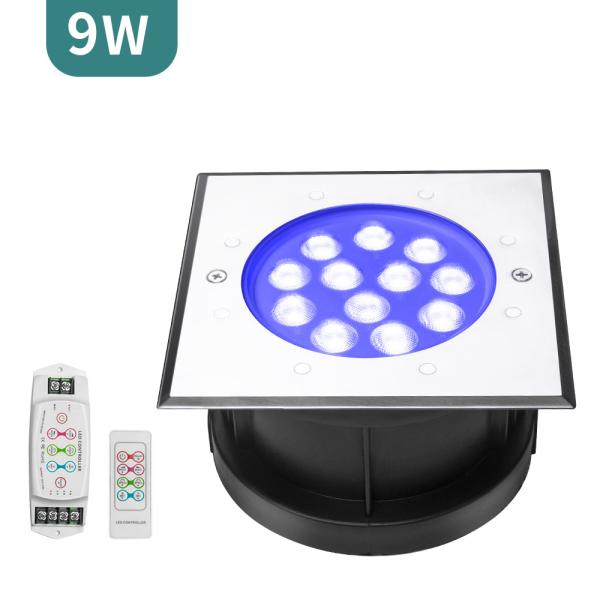

manufacturers ip68 Waterproof 9W External Control Park Light led
underground light
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Lights house ground must be 8 hours aging test.
3. Ground light spot finished products all passed 30 steps quality
inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Specification
| HG-UL-9W-SMD-G2-RGB-X |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | 150×150×87.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W Epistar |
| Light lumen | 380LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT: | RGB(DMX512/External /Wifi control |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Ground lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| Test position | LED Grond light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Land test (Min) | 480 | 480 |
| LED edge temperature(℃) | 68 | 75 |
Product Size
Application
Ground light outdoor led Widely used as garden, community, lawn,
park and other landscape lighting
FAQ:
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us in your email so that we will give
priority to your inquiry .
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order ,the cheaper price you will get
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great
honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier,
it can plus 8pcs amplifier. Totally the quantity of led par56 lamp
is 100pcs. And RGB Synchronous
controller is 1 pcs, amplifier is 8pcs.
