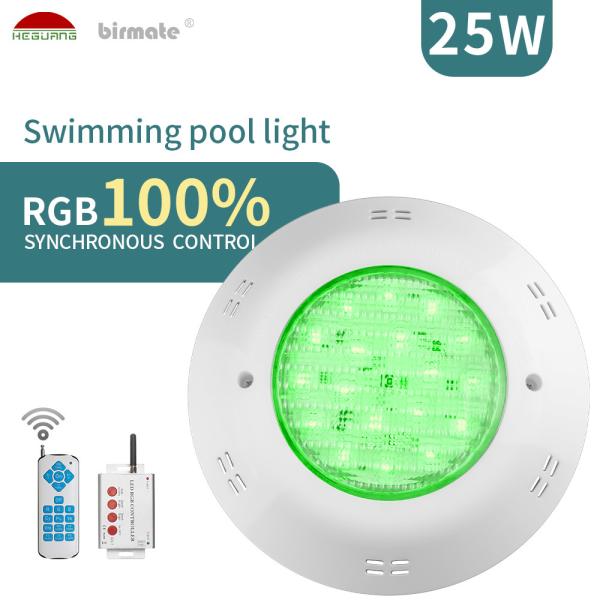

Product details
1. All products provide warranty 2 year.
2. IP68 Structure waterproof, without resin-filled.
3. Anti-UV PC cover, excellent yellowing resistance, and durable
4. Material: engineering ABS material+ANTI UV PC cover, no
yellowing or dazzling for two years.
5. RGB Switch control and synchronous control are the best selling
control in Heguang.
6. LED inground pool light use VED standard waterproof cable,
better waterproof and anti-aging ability
with pure copper wire.
7. 12v dc led swimming pool light with white PC back cover, High
tension waterproof silicone ring.
8. Reliable quality with 100% 10m depth waterproof test.
9. 12v underwater lamp must be 8 hours aging test.
10. Swimming pool light underwater Finished products all passed 30
steps quality inspection
| HG-PL-18X3W-F1-RGB-T |
| Lamp parameter | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×85mm |
| Input voltage | AC12 |
| Wattage | 24W±10％ |
| Light lumen | 1200LM±10％ |
| Beam angle | 120° |
| BASE | wire out |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220Vcoil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 70 | 73 |
Application

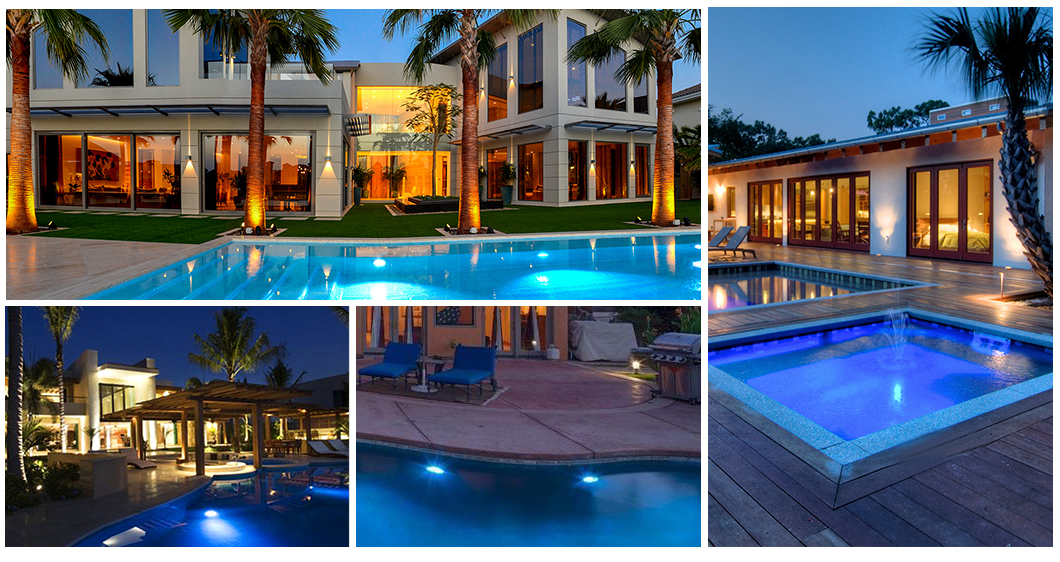

Surface mounted pool lights application: Concrete pool ,Vinyl pool
,Outdoor Swimming Pool ,family pool,
hotel pool ,underwater etc.
Connection
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us directly or leave us the messge ,we will give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get
them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control
,external control ,wifi control ,DMX512 control,etc.
