Product details
1. Led Color: White/Red/Green/Blue/RGB.
2. Private Mode products,Support ODM&OEM.
3. 316L Stainless steel material, super good anti-corrosion.
4. VDE standard outlet: standard cable length is 1 meter.
5. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
Product Features
1. Nickel plated brass PG7 connector, IP68 waterproof
2. RGB Led reflector light are 316L Stainless steel material ,super
good anti-corrosion.
3. Customized IP68 waterproof nickel plated brass design,good
anti-corrosion.
4. VDE waterproof cable with rubber sleeve,resistant voltage
2000V,temperature resistance at -40℃ to 90℃.
5. RGB three-channel circuit design, universal RGB four-wire
external controller, using DC24V power input
| HG-UL-3W-SMD-RGB-X |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×118mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 3W±1W |
| Light lumen | 90LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control |
| Wave Length (nm) | R: 620-630nm |
|
| G:515-525nm |
| B:460-470nm |
| packing/ shipping | Lamp sizeInner box dimension | 104×104×133mm |
| N.W. / pc | 480g |
| G.W. / pc | 530g |
| Carton dimension | 540×540×285mm |
| Qty. / ctn. | 50PCS/CTN |
| G.W. / ctn. | 27.5Kg |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 60 | 45 | 58 | 65 | 70 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Finished products all passed 30 steps quality inspection.
3. Good looking stamping SS316 rivet screws,more stable, 9never
fall off.
4. Good looking with rivet screw and cover nut assembly,longer
lifespan.
5. IP68 structure waterproof, can long time use under water.
6. Led reflector must be 8 hours aging test and provide 2 Years
warranty.
LED underwater pool light all passed 30 steps quality control, 100%
waterproof at 10m depth,
8 hours LED aging test,100% inspection before deliver.

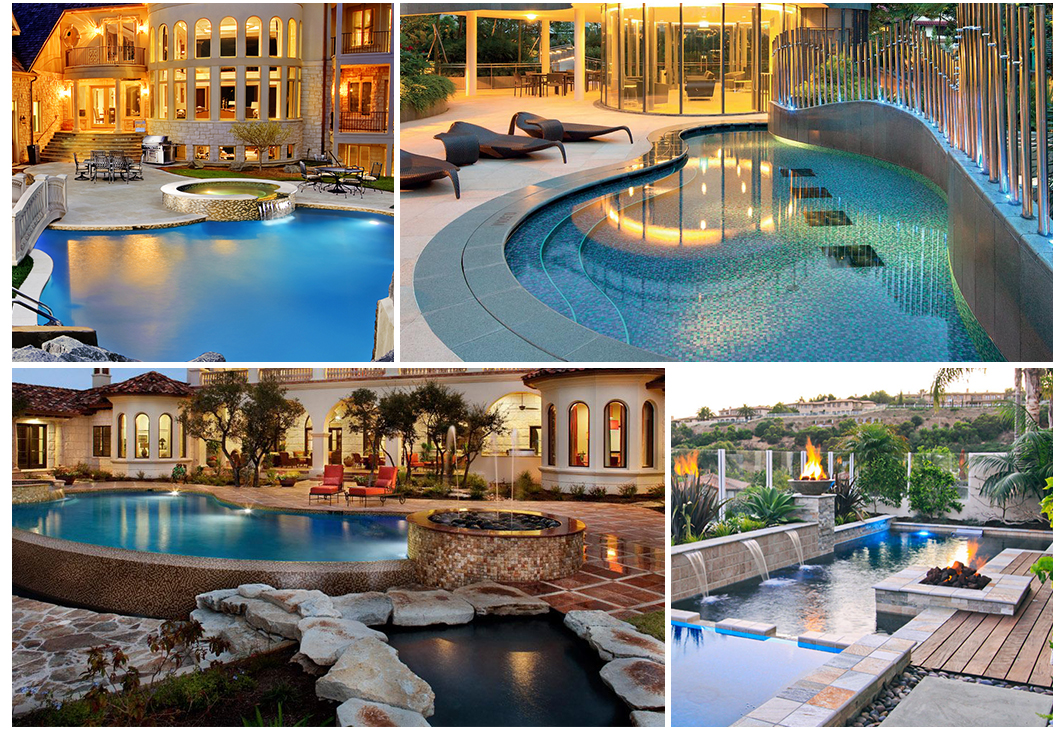

Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water
pipe binding installation method, widely used in garden pool,
square pool, hotel pool, fountain
and other underwater lighting.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry .
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
