Product details
1. Installation method:recessed install.
2. LED pool light underwater IP Rank: IP68 waterproof.
3. Shinning angle: 30°, other options: 15°/45°/60°.
4. 316L Stainless steel material , super good anti-corrosion.
5. LED Color&Contro Way: RGB color with Extenal control.
6. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional)
| HG-UL-3W-SMD-R-RGB-D |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×88mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 3W±1W Epistar |
| Light lumen | 90LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |

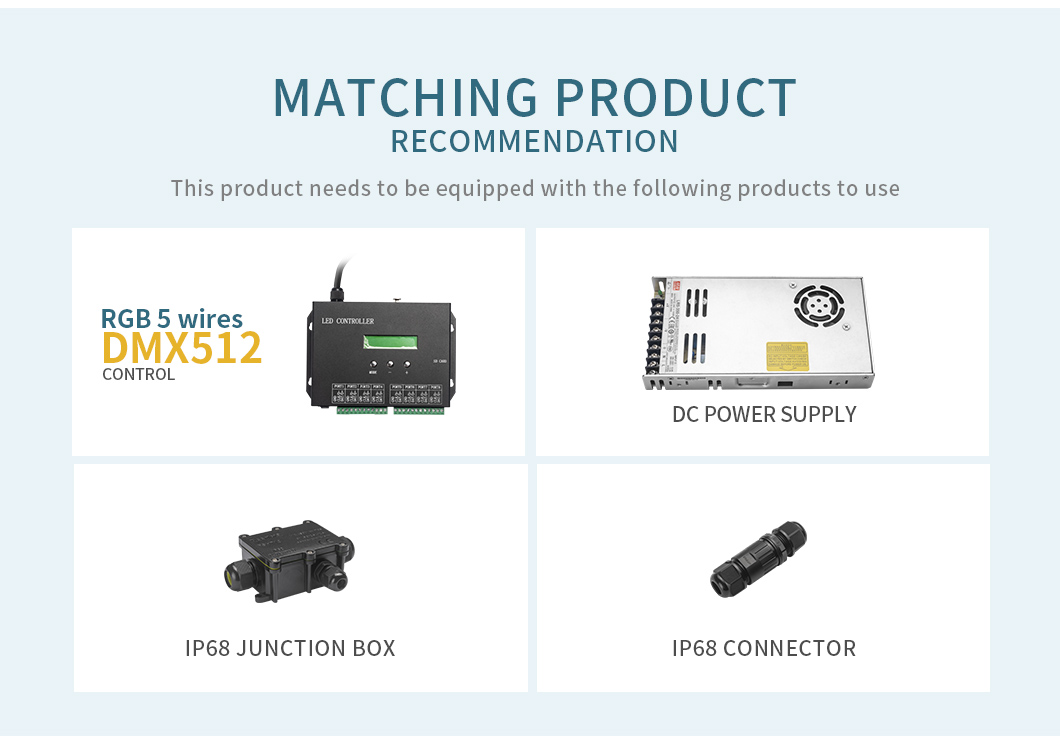

| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2,
external controller (can get the RGB color changing synchronous) 4
wires |
| 3.RGB synchronous control design,2 wires connection 4, automatic
changing 2 wires |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 60 | 45 | 58 | 65 | 70 |
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED aging test,100% inspection before deliver.
Contact details:
Alan
Sales Representitive
Mobile:008613652382231
Web: https://www.led-poollight.com/
Application
IP68 led pool bulbe widely used in cement swimming pools, hot spring pools, garden
pools and other
underwater lighting.
What information should I let you know when I want to make a
inquiry?
1.What color do you want?
2.Which voltage ( low voltage or high voltage)?
3.What kind of beam angle did you need?
4.How many quantity do you need?
5.What material do you need?
