1. Reliable quality with 100% 10m depth waterproof test.
2. Good looking stamping SS316 rivet screws,more stable ,never fall
off.
3. Swimming pool light 18W must be 8 hours aging test and provide 2
Years warranty.
4. Color changing SS316 Pool light finished products all passed 30
steps quality inspection.

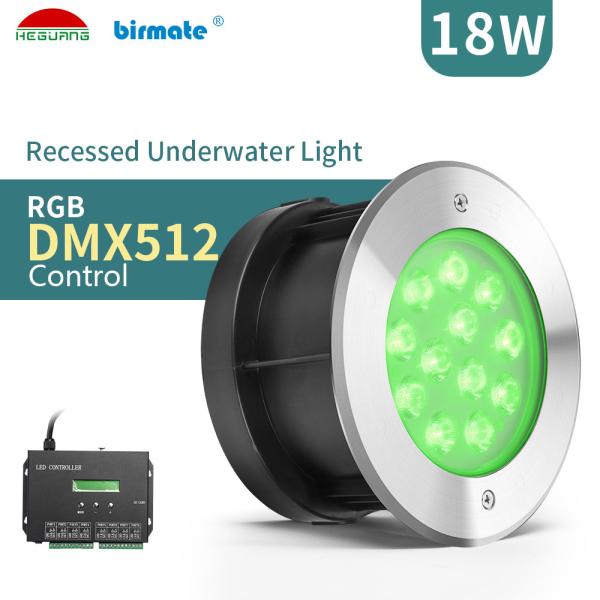

| HG-UL-18W-SMD-R-RGB-D |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×156.5mm |
| Input voltage | DC24V |

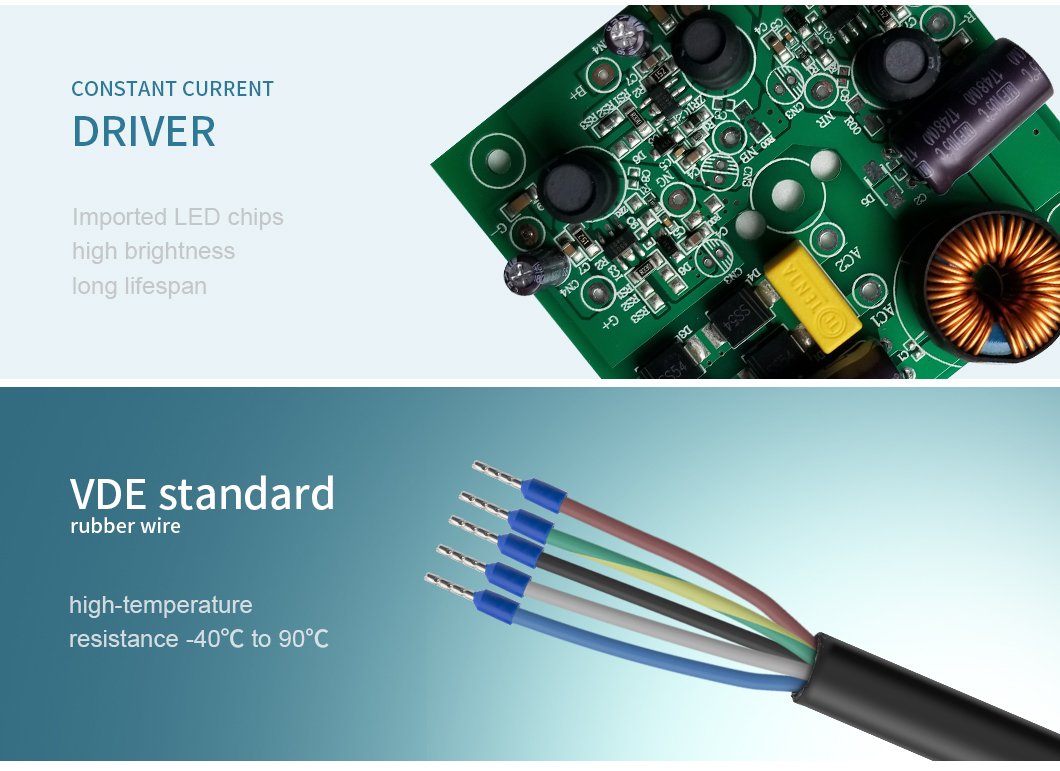

| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 17W±10% Epistar |
| Light lumen | 600LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | DMX512/External /Wifi control/External control |
| Wave Length (nm) | R: 620-630nm |
|
| G:515-525nm |
| B:460-470nm |
| Packing | Lamp sizeInner box dimension | 160×160×110mm |
| N.W. / pc | 900g |
| G.W. / pc | 1030g |
| Carton dimension | 820×340×250mm |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2,
external controller (can get the RGB color changing synchronous) 4
wires |
|
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 55 | 59 | 64 | 70 | 64 | 64 | 70 | 70 |
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,8 hours LED aging test,100% inspection
before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
FAQ
Q1:How to choose the right LED energy saving lamps?
A:Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
A:Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
A:Temperature: It requires that junction temperature of LED chip
should be ≤120ºC, so the
center temperature at the LED bottom of light board should be ≤ 80
ºC.
Q4: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us directly or leave us the messge ,we will give
priority to your inquiry.
Q5: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
Q6: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
