Product details
1. LED Control Way: DMX512 Control.
2. Led pool lights under water swimming use Cree Led Chip.
3. 316L Stainless steel material, strong anti-corrosion ability.
4. IP Rank: IP68 waterproof.VDE standard outlet: standard cable
length is 1 meter.
5. Material: 316L Stainless steel +Tempered glass cover cover, no
yellowing or dazzling for two years.
6. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional)
HG-UL-5W-SMD-R-RGB-X |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×88mm |
| Input voltage | DC24V |

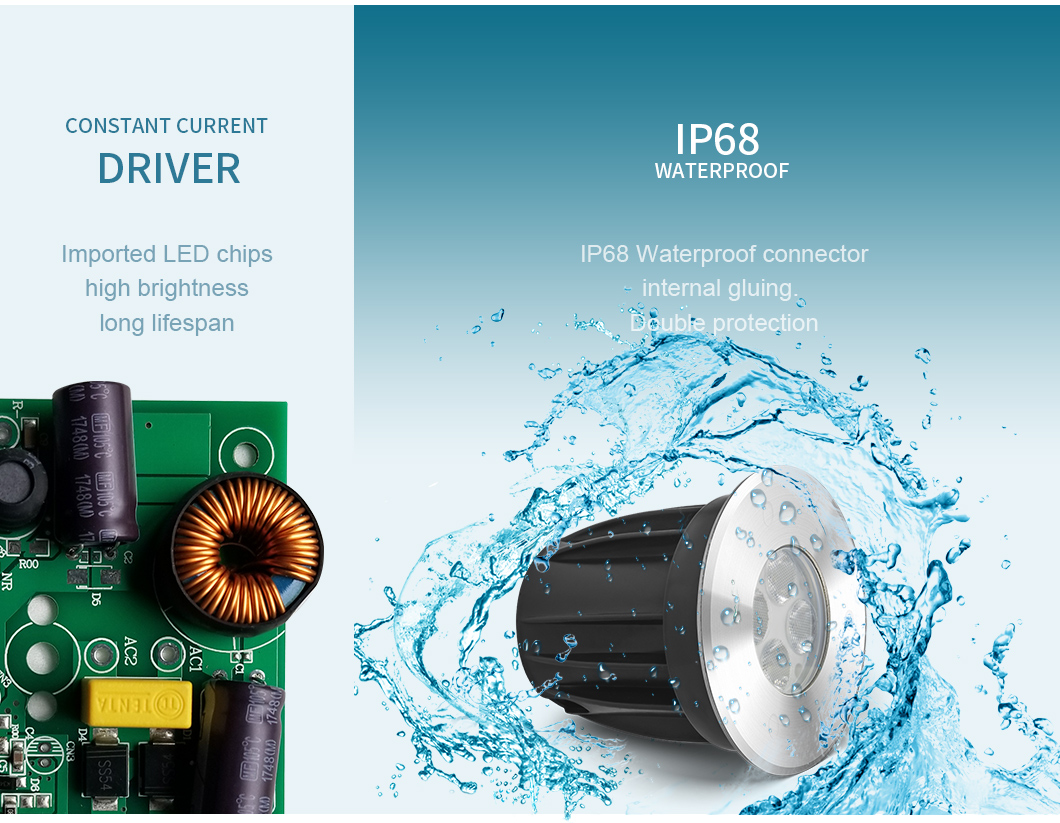

| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 5W±1W Epistar |
| Light lumen | 130LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control/automatic changing) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| packing/ shipping | Lamp sizeInner box dimension | 104×104×133mm |
| N.W. / pc | 500g |
| G.W. / pc | 550g |
| Carton dimension | 540×540×285mm |
| Qty. / ctn. | 50PCS/CTN |
| G.W. / ctn. | 27.5Kg |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2,
external controller (can get the RGB color changing synchronous) 4
wires 3.RGB synchronous control design,2 wires connection 4,
automatic changing 2 wires |
|
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 53 | 45 | 58 | 62 | 62 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof, can long time use under water.
3. Light for swimming pool must be 8 hours aging test and provide 2
Years warranty.
4. Swimming Pool Lamp 12V finished products all passed 30 steps
quality inspection.
5. Good looking stamping SS316 rivet screws,more stable, never fall
off.
6. Good looking with rivet screw and cover nut assembly, longer
lifespan.
LED underwater pool light all passed 30 steps quality control, 100%
waterproof at 10m depth,8 hours LED
aging test, 100% inspection before deliver.
Application
RGB pool light bulb widely used in cement swimming pools, hot
spring pools, garden pools and other
underwater lighting.
Contact details:
Alan
Sales Representitive
Mobile:008613652382231
Web: https://www.led-poollight.com/
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: What is the MOQ?
A: NO MOQ, the more you order, the cheaper price you will get.
3. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
4.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
