Product Features

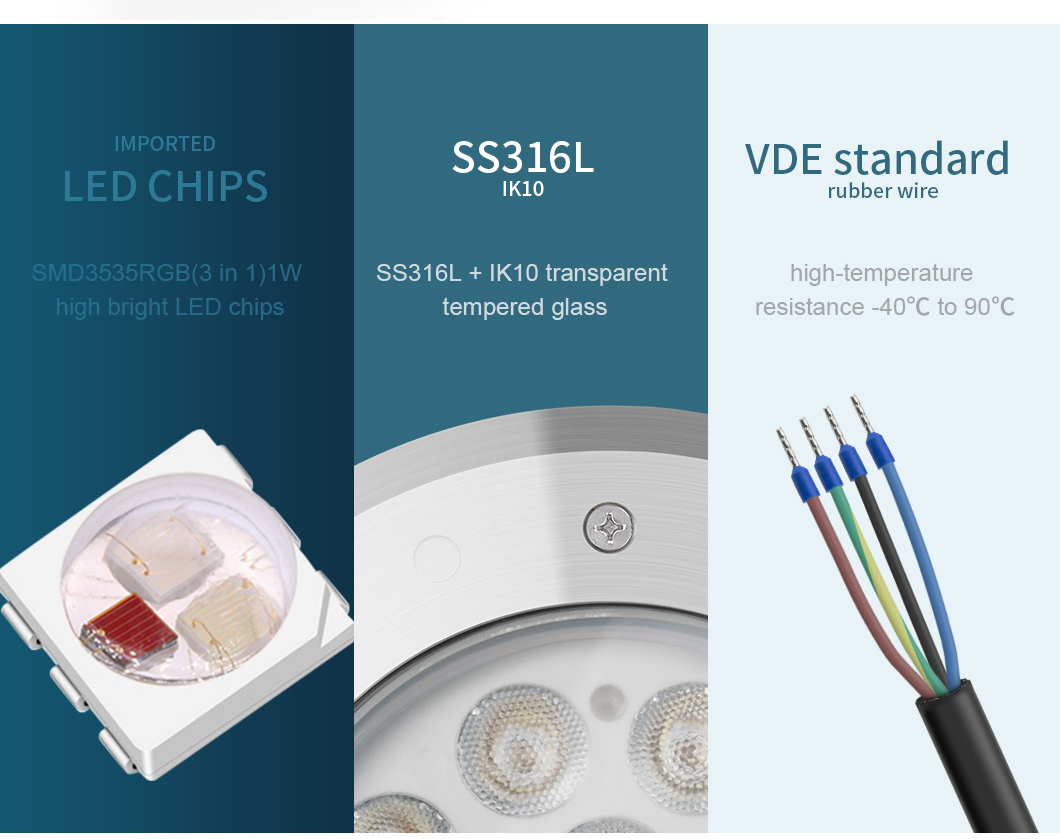

1. CREE brand lamp beads, super high brightness, high display means
Ra≥80.
2. 24volt led swimming pool light use 316L Stainless steel
material, super good anti-corrosion.
3. Customized IP68 waterproof nickel plated brass design,good
anti-corrosion.
4. Integrated bead lens with uniform lighting, no dazzling, light
transmittance ＞85%.
5. High quality wafer chip Low light decay / long life / low energy
consumption.
6. Low voltage constant current power supply drive, efficiency
＞90%, make sure the LED is constant current working,the input
voltage change no effect with the LED lifespan.

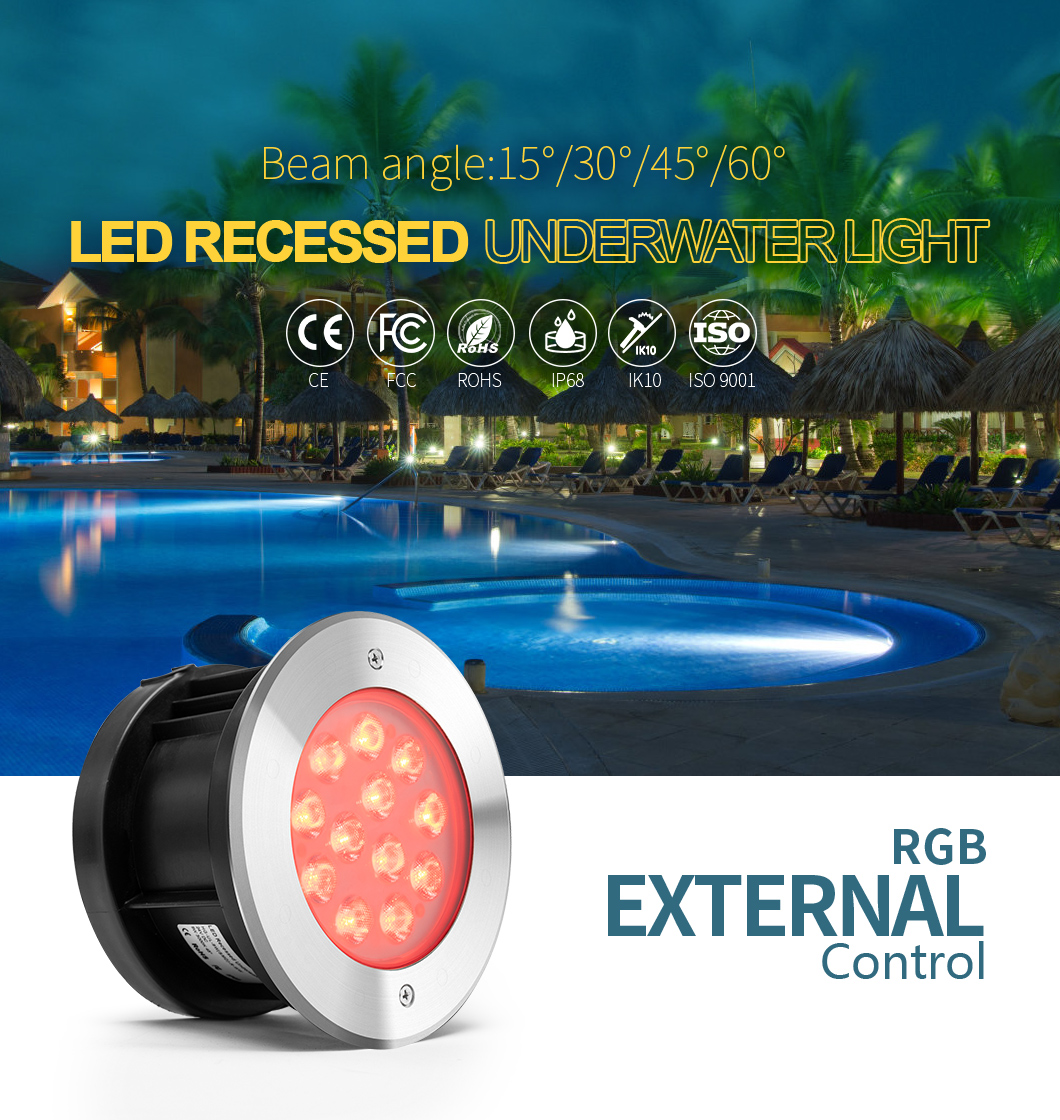

| HG-UL-9W-SMD-R-RGB-X |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×87.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W Epistar |
| Light lumen | 380LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control |
| Wave Length (nm) | R: 620-630nm |
|
| G:515-525nm |
| B:460-470nm |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| packing/ shipping | Lamp sizeInner box dimension | 160×160×110mm |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 52 | 59 | 45 | 58 | 62 | 68 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof ,can long time use under water.
3. Good looking stamping SS316 rivet screws,more stable ,never fall
off
4. Good looking with rivet screw and cover nut assembly, longer
lifespan.
5. IP68 Swimming pool light must be 8 hours aging test and provide
2 Years warranty.
6. LED swimming pool light yellow Finished products all passed 30
steps quality inspection
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding
installation method, widely used in garden pool, square pool, hotel
pool, fountain and other underwater lighting.
FAQ
1.How to get a sample?
-Based on the value of our products, we do not supply free sample,
if you need a sample for testing,
please kindly contact our sales for more details.
2.How long to deliver the products?
-The exact delivery date need to according to your model and
quantity. Usually within 5-7 working
days for sample after receive the payment and 15-20 working days
for mass production.
3.Do you offer guarantee for the products?
-Yes, we offer 2 years warranty our products, several item can be 3
years with extra costs
4.What is the MOQ?
-NO MOQ, the more you order, the cheaper price you will get.
5.Can you accept small trial order?
- Yes, no matter large or small trial order, your needs will get our
full attention. It’s our great honor to cooperate with you.
6.How to deal with the faulty products?
-Firstly, our products are produced in strict quality control
system and the defective rate will be less
than 1%.Secondly, during the guarantee period,we will send new
replacement with new order for small
quantity.. For defective batch products, we will repair them and
resend them to you or we can discuss the solution including re-call
according to real situatio.
