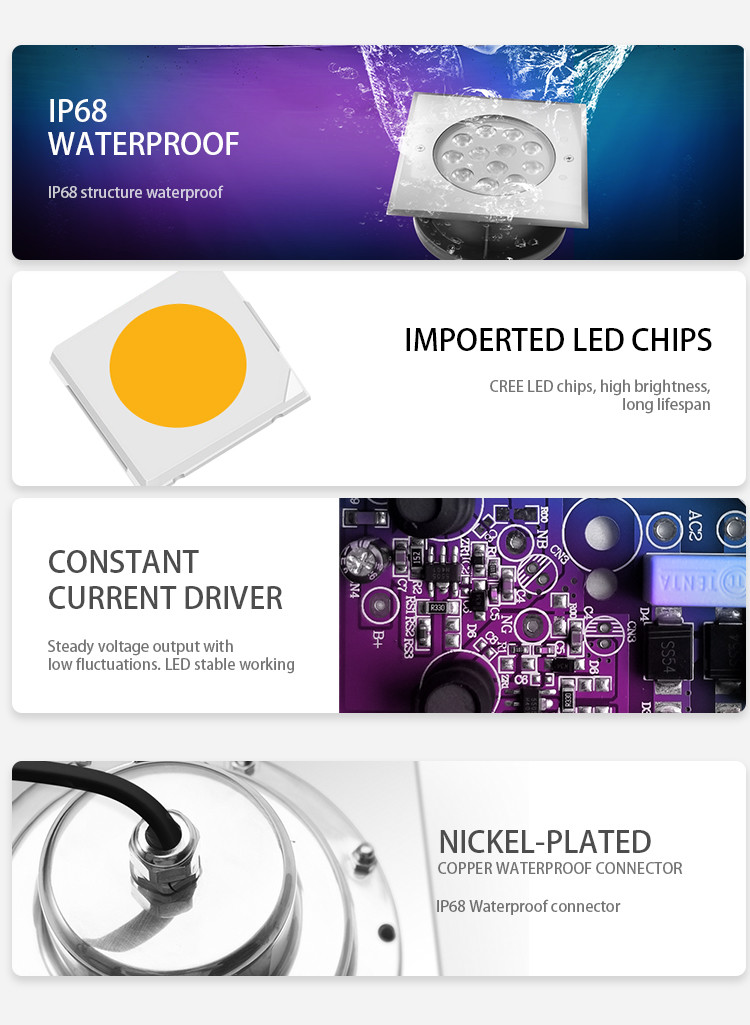

Product Features
1. VDE standard rubber wire, connected with IP68 nickel-plated
copper connector.
2. IP68 Structure waterproof, all products succeeded in 10m deep
water testing before delivery.
3. Lamp succeeded in the IES and Temperature rise test
4. Integrated bead lens with uniform lighting ,no dazzling,light
transmittance ＞85%
5. Customized IP68 waterproof nickel plated brass design,good
anti-corrosion.
Specification

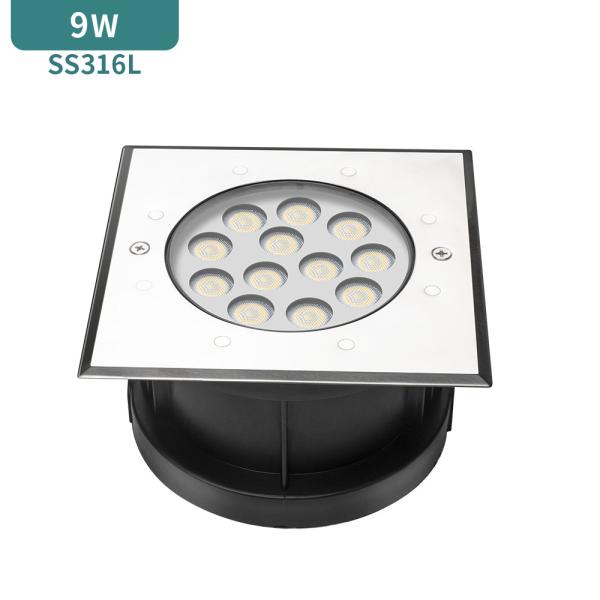

HG-UL-9W-SMD-G2-H |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | 150×150×87.5mm |
| Input voltage | A100-C240V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W CREE |
| Light lumen | 850LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| Test position | LED Grond light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| land test (Min) | 480 | 480 |
| LED edge temperature(℃) | 68 | 75 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. In ground pool light must be 8 hours aging test.
3. Warm white ground lights Finished products all passed 30 steps
quality inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
mini ground light wdely used as garden, community, lawn, park and
other landscape lighting
Some tips for you
1. All lamps are self-developed patent products.
2. According to the LED characteristic, the center temperature at
the LED bottom of light board
must be controlled strictly( ≤ 80 ℃).
3. High quality driver of lamps to ensure the long lifespan.
4. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
5. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate
is less than three per thousand.
6.Low watage with high Lumen. This will save more electricity bill.
