Brand Name : | Birmate |
Model Number : | HG-UL-36W-SMD-X |
Certification : | CE, RoHs, FCC, IP68,IK10 |
Price : | negotiation |
Payment Terms : | L/C, T/T, Western Union, PayPal |
Supply Ability : | 50000 pcs per month |
Delivery Time : | 5-7 working days |
HG-UL-36W-SMD-X | ||||||||
Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable | ||||||
length | Φ220×225mm | |||||||
Input voltage | DC24V | |||||||
Constant Driver | yes | |||||||
Over-current Protection | yes | |||||||
Wattage | 36W±10% | |||||||
Light lumen | 1200LM±10% | |||||||
Beam angle | 15°/30°/45°/60° | |||||||
Wave Length (nm) | R: 620-630nm | |||||||
G:515-525nm | ||||||||
B:460-470nm | ||||||||
Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
IP Rating | IP68 | |||||||
Certificate | CE, RoHS,FCC,IP68,IK10 | |||||||
Life-span | 50,000 hours | |||||||
Warranty | 2Years | |||||||
packing/ shipping | Lamp sizeInner box dimension | 230×230×118mm | ||||||
N.W. / pc | 2450g | |||||||
G.W. / pc | 2670g | |||||||
Carton dimension | 480×245×500mm | |||||||
Qty. / ctn. | 8PCS/CTN | |||||||
G.W. / ctn. | 17.0Kg | |||||||
test Site | LED Underwater light (Min) | |||||||
Ambient temperature 28℃ | Ambient temperature 40℃ | |||||||
Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
Light source edge temperature(℃) | 55 | 59 | 64 | 70 | 64 | 64 | 70 | 70 |
Product Size
LED underwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth,8 hours LED aging test,100% inspection before deliver.

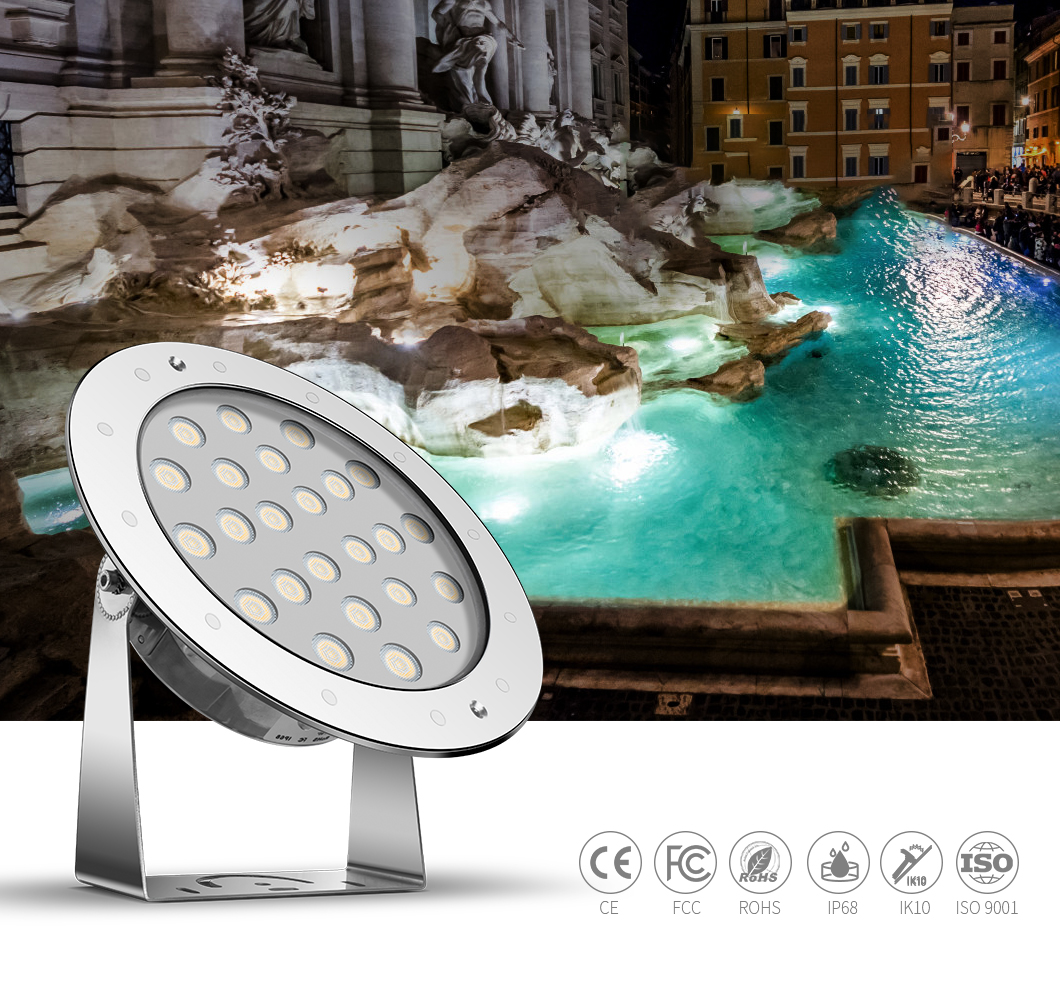

Application
(Conventional bracket) can be suitable for underwater bracket fixing or (with clamp) water pipe binding installation method, widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.
Packing List
Item | HG-UL-36W-SMD-X |
Product weight | 2450G/PCS |
color box size | 230×230×118mm |
Carton/pcs | 10pcs/Carton |
Carton size | 480×245×500mm |
Carton weight | 17.0KG/CTN |
Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must
be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
![]() |
