Product features

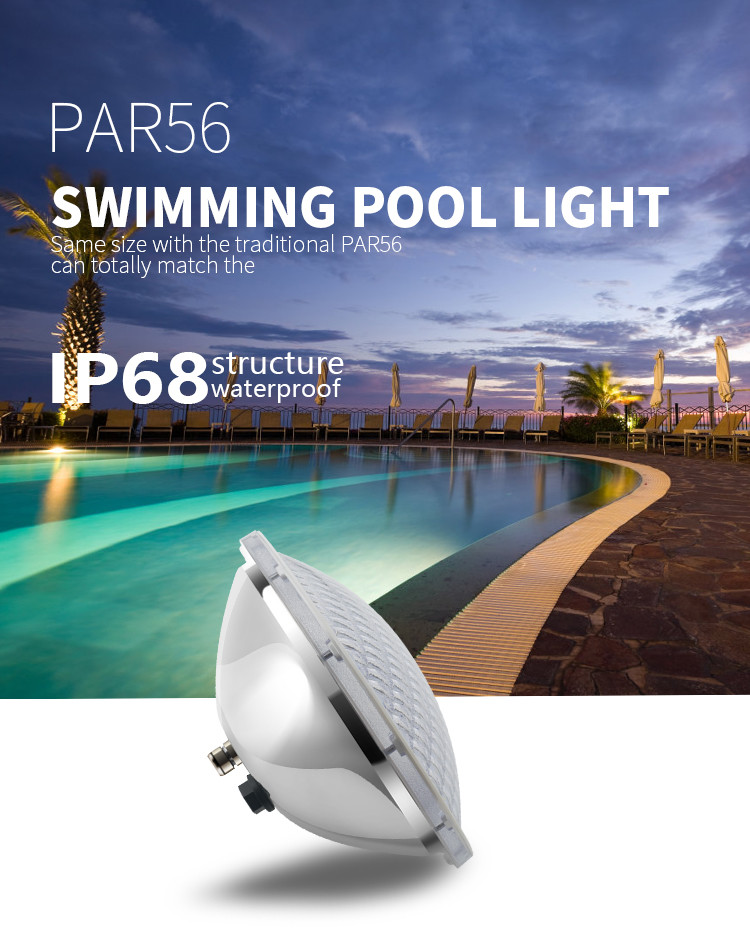

1.Same size with the traditional PAR56,can totally match various
PAR56 niches
2.RGB 100% synchronous control,2 wires connection,AC12V,50/60 Hz
3.SMD5050-RGB high bright LED,red,green,blue(3 in 1)
4.SS316L + Anti-UV PC cover
Specification
| HG-P56-18W-C-RGB-T-UL |
| Parameter | Material | 316L Stainless steel +anti UV PC cover. |
| Working voltage | AC12V |
| Wattage/Light lumen | 17W±10％/520LM±10％ |
| Product Size | Φ177×102mm |
| IP Rank | IP68 |
| Chip | SMD5050-RGB |
| Certificated | UL,FCC,CE, RoHS,IP68 |
| LED Chip | 5050SMD-RGB |
| Control Way | Synchronous Control |
| Led Color | RGB |
| N.weight | 750g |
| test Site | Underwater test lighting time(Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 57 | 59 | 64 | 69 | 60 | 65 | 68 | 70 |
| LED | Beam angle | 120° |
| working temperature | -20～40℃ |
low voltage pool light, Widely used in swimming pool,vinyl
pool,fiberglass pool,spa,etc.
UL certification low voltage pool light, patented four-layer
design, and ten-meter water depth test to ensure product quality
Application
Swimming pool led application: Concrete pool, Vinyl pool, Outdoor
Swimming Pool,
family pool, hotel pool, underwater etc.
Heguang always insist 100% original design for private mode , we
will constantly develop new products to adapt the market request
and provide customers with comprehensive and intimate product
solutions to ensure worry-free after-sales !
Connection
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Multi Color PAR56 Bulb must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection
4. Good looking stamping SS316 rivet screws,more stable ,never fall
off
5. Good looking with rivet screw and cover nut assembly,longer
lifespan.
6. IP68 structure waterproof ,can long time use underwater.
FAQ:
1.Q:Why choose your factory?
A:We in led pool lighting over 17 years, iWe have own professional
R&D and production and sales team.we are the only one China
supplier who is listed in UL certificate in Led Swimming pool light
industry.
2.Q:How about the warranty?
A:UL Certification products are 3 years warranty.
3. Q:Do you accept the OEM&ODM?
A:Yes,OEM or ODM service are available.
4.Q:Do you have CE&rROHS certificate?
A:we only have CE&ROHS,also have UL Certification (Pool
lights), FCC, EMC, LVD, IP68 , IK10.
5.Q:Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q:May I get samples to test quality and how long can I get them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
7.Q:how can get my package?
After we send the products,12-24hours we will send tracking number
to you ,then you can track your products on your local express
website.
