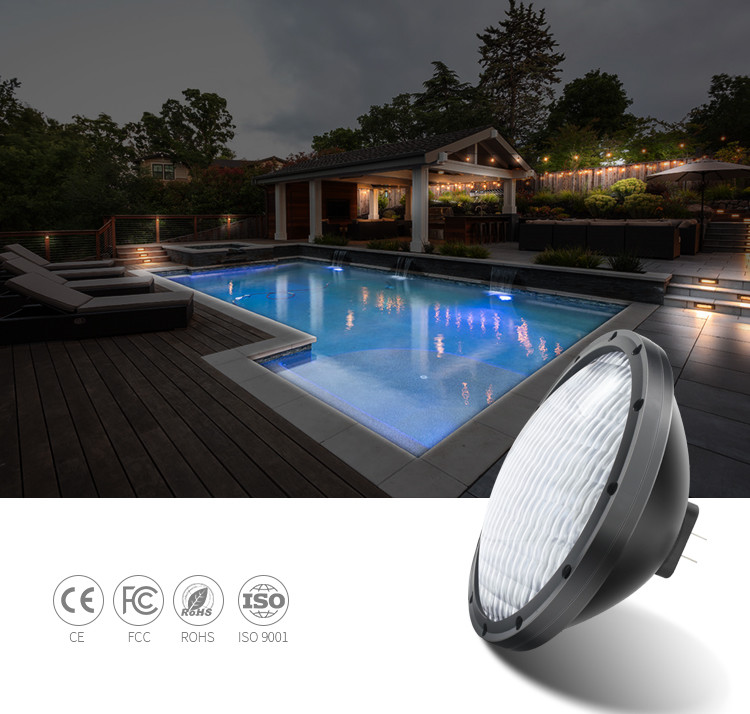

21W GX16D Base 12V Aluminum IP68 Underwater Spot Par56 Led Swimming
Pool Lamp
Product details
1. IP Rate: IP68 Structural waterproof.
2. High bright and energy saving imported LED chips, low light
decay.
3. CD12 Die-cast aluminum material shell, great heat dissipation
through structure.
4. RGB Switch control and synchronous control are the best selling
control in Heguang.
5. Adjustable height patented design, PAR56 bulb can perfectly
match with the niches of Pentair, Jandy, Hayward, etc.
Product Features
1. Anti-UV transparent PC cover, won't turn yellow within 2 years.
2. 8 hours aging testing, 30 steps quality inspections, assure the
great quality pool light.
3. Constant current driver, comply with CE & EMC standard.
4. IP68 316 pool lights lamp use 316 stainless steel screw
assembly.
5. Constant current power driver, EMC anti-interference circuit.
6. Led pool light ip68 with VED standard waterproof cable, pure
copper wire.
Specification
| HG-P56-20W-B(GX16D-L) |
| Lamp paramater | Material | Aluminum+Anti UV PC cover |
| Light dimension | Φ177×118mm |
| Input voltage | AC12/DC12V |
| Wattage | 21W±10％ |
| Light lumen | 1800LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | GX16D |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 65 | 66 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 swimming pool step light must be 8 hours aging test.
3. led light pool ip68 underwater Finished products all passed 30 steps quality inspection.
4. Good looking stamping SS316 rivet screws,more stable, never fall
off.
5. Good looking with rivet screw and cover nut assembly,longer
lifespan.
Application
led salt water pool light application: Concrete pool ,Vinyl pool
,outdoor Swimming Pool ,family pool,hotel pool ,underwater etc
led salt water pool light construction drawing
Packing List
| Item | HG-P56-20W-B(GX16D-L) |
| Product weight | 1080G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 26.8KG |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
