High Power 18X1W Waterproof 12v Pool Light, White Color Vinyl Pool
Spa Light
Product details
1. Constant current driver, comply with CE & EMC standard.
2. Patented 4-layers waterproof structure, more stable than
resin-filled pool lights
3. IP68 Structure waterproof, without resin-filled.
4. Material: Engineering ABS material+ANTI UV PC cover, no
yellowing or dazzling for two years.
5. RGB Switch control and synchronous control are the best selling
control in Heguang.
Product Features
1. 8mm thickness bracket with screws fixation at 2 end, more
fastness.
2. waterproof led light for swimming pool with SS316 screws, good
anti-corrosion.
3. Constant current power driver, EMC anti-interference circuit.
4. Nickel plated brass PG7 connector, good waterproof and
anti-corrosion.
5. VDE standard rubber wire, connected with IP68 nickel-plated
copper connector.
Specification
| HG-PL-18X1W-V |
| Lamp paramater | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×150.6mm |
| Input voltage | AC12/DC12V |
| Wattage | 19W±10％ |
| Light lumen | 1500LM±10％ |
| Halogen replacement | 125W |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 65 | 71 |

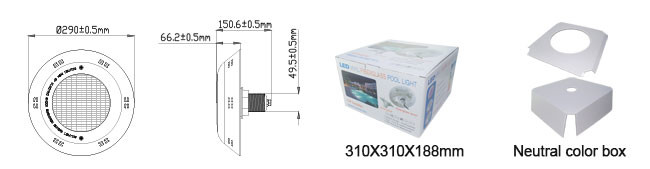

Dimension
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Pool lights led underwater swimming Must be 8 hours aging test.
3. IP68 structure waterproof, can long time use underwater.
4. Constant current driver, comply with CE & EMC standard.
5. Waterproof light swimming pool led Finished products all
passed 30 steps quality inspection
Application
Led Vinyl Pool Lights widely used for underwater lighting in film
pools, hot spring pools, garden pools, etc.
Installtion
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If
you are urgent to get the prices,
please call us or tell us in your email so that we will give
priority to your inquiry.
2, Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3, Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of the sample is the same as a normal order and can
be ready in 3-5 days.
4, Q: What is the MOQ?
A: One piece is OK. Because any order is from the sample.
5, Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
