Product details
1. Highlight LED Chips, low light degradation and long lifespan,
CRI>80.
2. Anti-UV PC cover, excellent yellowing resistance, and durable.
3. 2-3MM aluminum light board for excellent heat dissipation,
2.0W/(m.k) Thermal conductivity.
4. IP Rate: IP68 Structural waterproof.
5. IP68 nickel plated brass connector +VED standard waterproof
cable ,better waterproof and anti-corrosion.
6. RGB Switch control and synchronous control are the best selling
control in Heguang.

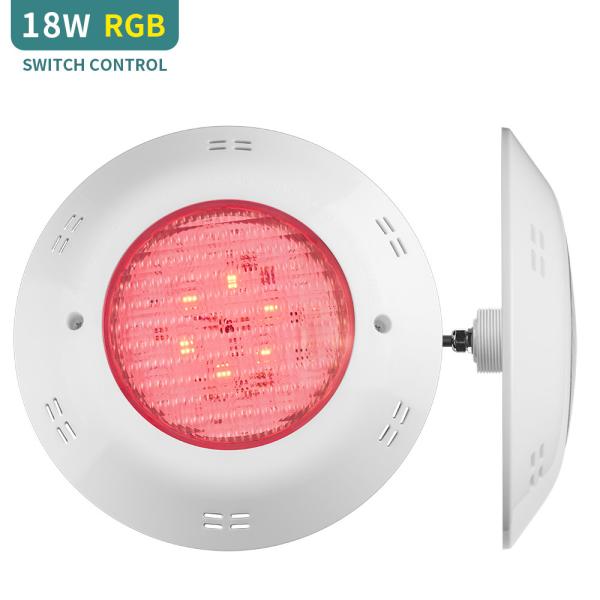

| HG-PL-18W-F1-RGB-K |
| Lamp parameter | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×85mm |
| Input voltage | AC12 |
| Wattage | 17W±10％ |
| Light lumen | 520LM±10％ |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220Vcoil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Switch ON/OFF effect |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 52 | 58 | 64 | 67 | 48 | 56 | 60 | 70 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. 12Vpool light must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection
4. IP68 structure waterproof ,can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
6. Assembly with SS316 screws,more durable.
Application
Waterproof led lights for poolapplication :Concrete pool ,Vinyl pool ,Outdoor Swimming Pool
,family pool,
hotel pool ,underwater etc.
Some tips for you
Q1: How to choose the right LED energy saving lamps?
A:Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
A:Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
A:Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
