Surface Mounted 12 Volt 3W IP68 ABS Low Voltage LED Lights For
Swimming Pool Vinyl
Product details
1. High light LED Chips, low light degradation and long lifespan,
CRI>80
2. LED light for swimming pool has Anti-UV PC cover, excellent
yellowing resistance, and durable.
3. IP68 Structure waterproof, without resin-filled.
4. VDE standard rubber wire, connected with IP68 waterproof
connector.
5. Constant current driver, comply with CE & EMC standard.
Product Features
1. Anti-UV PC cover, excellent yellowing resistance, and durable.
2. All products succeeded in 10m deep water testing before
delivery.
3. 3W durable pool light, IP68 waterproof.
4. Beautiful pool light, plastic body.
5. Underwater light jacuzzis spa Vinyl Liner fiberglass led
swimming pool lights.
Specification
| HG-PL-3W-V1 |
| Lamp paramater | Material | Plastic + Transparent PC cover |
| Light dimension | Φ103× 125mm |
| Input voltage | AC12/DC12V |
| Wattage | 3±1W |
| Light lumen | 180LM±10％ |
| Halogen replacement | 15W |
| Beam angle | 120° |
| BASE | wire out |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 63 | 72 |

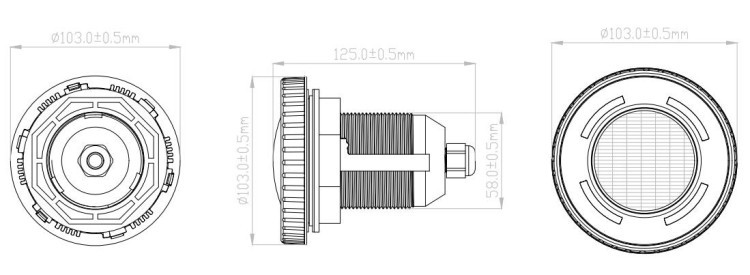

Product size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Pool led lights underwater Must be 8 hours aging test.
3. Pentair pool light finished products all passed 30 steps quality
inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Led Vinyl Pool Lights widely used for underwater lighting in film
pools, hot spring pools, garden pools, etc.
Installtion
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If
you are urgent to get the prices,
please call us or tell us in your email so that we will give
priority to your inquiry.
2, Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3, Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of the sample is the same as a normal order and can
be ready in 3-5 days.
4, Q: What is the MOQ?
A: One piece is OK. Because any order is from the sample.
5, Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
