IP68 waterproof RGB color ABS switch control par 56 led swimming
pool lights
Product Quick detail
1, IP Rate: IP68 Structural waterproof.
2. Multiple wattage options from 12W-70W.
3. Engineering ABS material, multiple color for option.
4. Pool light bulb led adapted to various American and German
lamps.
5. RGB Switch control and synchronous control are the best selling
control in Heguang.
Product features
1. Underwater led light pass 8 hours LED agening test
2. Finished product passed 30 steps quality inspection
3. Using Epiatar chip lamp beads, high cost performance.
4. Anti-UV PC cover, no yellowing or dazzling for two years
5. Constant current power driver,EMC anti-interference circuit.
6. PC material with bracket lens, high temperature and heat
resistance.
Specification
| HG-P56-18W-A-RGB-T |
| Lamp paramater | Material | Engineering ABS + Anti-UV PC cover |
| Light dimension | Φ177×95mm |
| Input voltage | AC12V |
| Wattage | 17W±10％ |
| Light lumen | 520LM±10％ |
| Beam angle | 120° |
| BASE | two screws terminal |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| test Site | LED PAR56 swimming pool lights (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 55 | 59 | 64 | 70 | 60 | 65 | 72 | 73 |

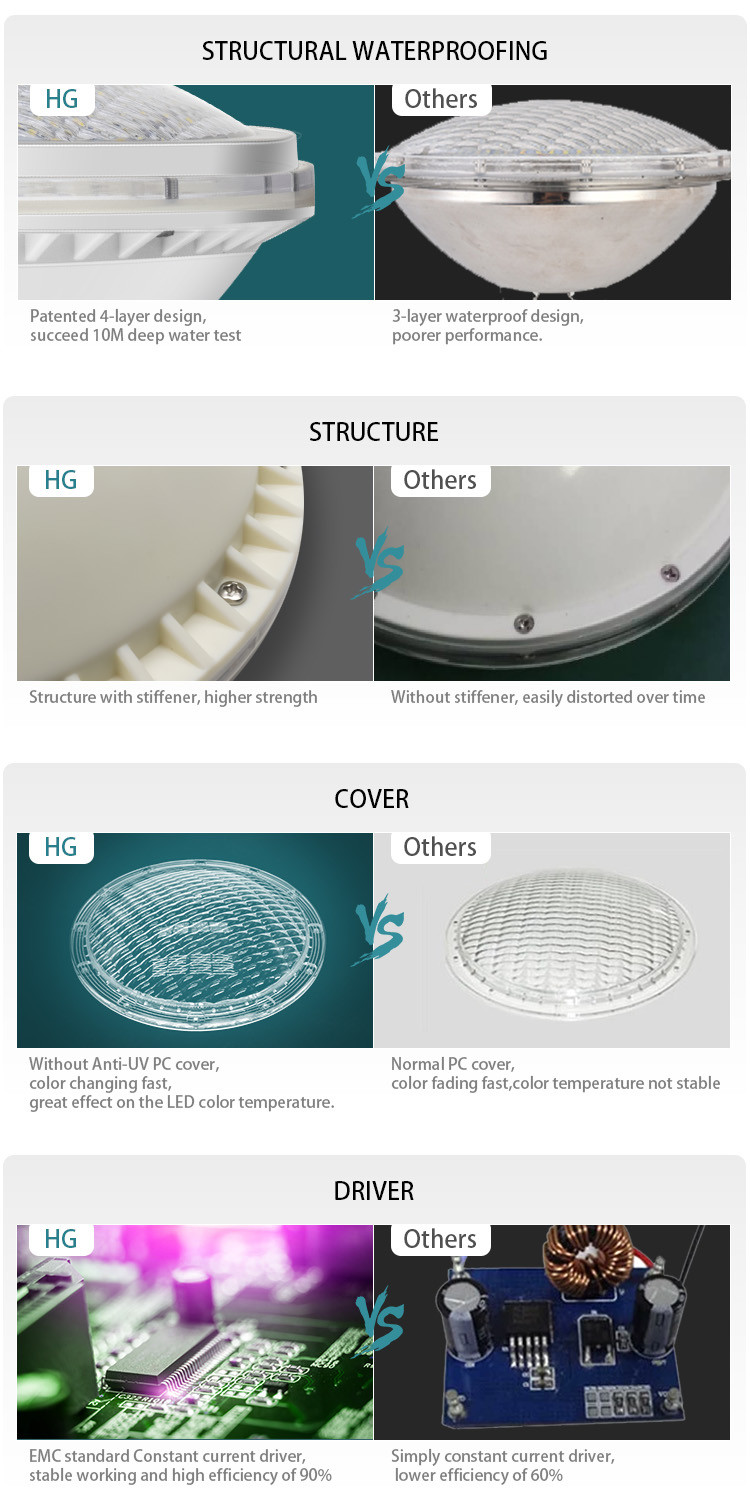

HG LED Pool lighting Compare others
Advantage
1. LED astral pool lights Get UL certification.
2. Fully compatible with PAR56 swimming pool lighting.
3. LED underwater pool light Match G53 pins.
4. IP68 Structural waterproof. No change color temperature .
5. Reliable performance with 100% water tested at a depth of 10m.
6. High-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate.
All passed 30 steps quality control , 100% waterproof at 10m depth
,8 hours LED agening test,
100% inspection before deliver.
Application
LED pool light bulb widely used in swimming pools, Plastic film
pools, glass fiber pools,
Bath pools, hot spring pools and other underwater lighting.
Packing List
| packing/ shipping | Lamp sizeInner box dimension | 185×185×118 mm |
| N.W. / pc | 410g |
| G.W. / pc | 610g |
| Carton dimension | 630×410×410 mm |
| Qty. / ctn. | 20PCS/Car |
| G.W. / ctn. | 13.8Kg |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center temperature at the LED bottom of
light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
