Par56 AC12V 18W warm white IP68 Anti-UV PC waterproof pool led
white lighting
Product Quick detail
1. Multiple wattage options from 12W-70W.
2. Swimming pool light blub is IP68 Structural waterproof.
3. Swimming pool led is environmentally friendly plastic case.
4. Color teperature: Pure White: 6500±10% Warm White:3000K±10% costomized.
5. RGB Switch control and synchronous control are the best selling
control in Heguang.
Specification
| HG-P56-18W-A2 |
| Lamp paramater | Material | Nylon+Anti-UV PC cover |
| Light dimension | Φ177×58mm |
| Input voltage | AC12/DC12V |
| Wattage | 18W±10％ |
| Light lumen | 1700LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | WIRE OUT |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 71 | 75 |
Product features
1. 8 hours LED agening test.
2. Multiple wattage options from 12W-70W.
3. IP68 Led white lighting is environmental protection ABS plastic
lamp cup.
4. Swimming light bulb using Epistar chip lamp beads, high cost
performance.
5. IP68 waterproof pool light use Anti-UV PC cover, no yellowing or
dazzling for two years.
6. Swimming pool light bulb can replace traditional halogen lamps,
fully matching the conventional
PAR56 lamps in the market.

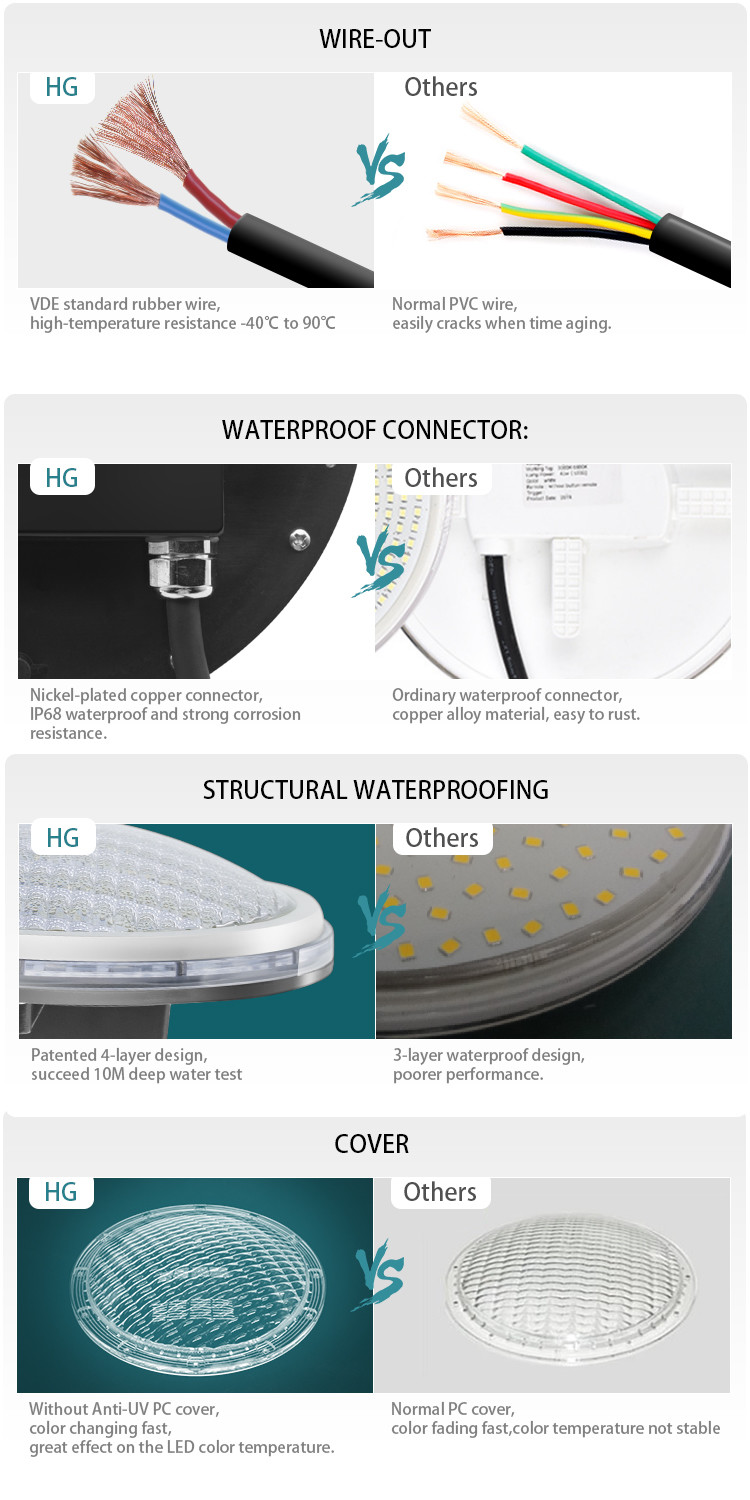

Advantage
1. Halogen replecement pool light get UL certification.
2. Fully compatible with PAR56 swimming pool lighting.
3. Halogen replecement Swimming lights match G53 pins.
4. IP68 Structural waterproof.No change color temperature .
6. Reliable performance with 100% water tested at a depth of 10m.
HG Swimming pool lights all passed 30 steps quality control , 100%
waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.

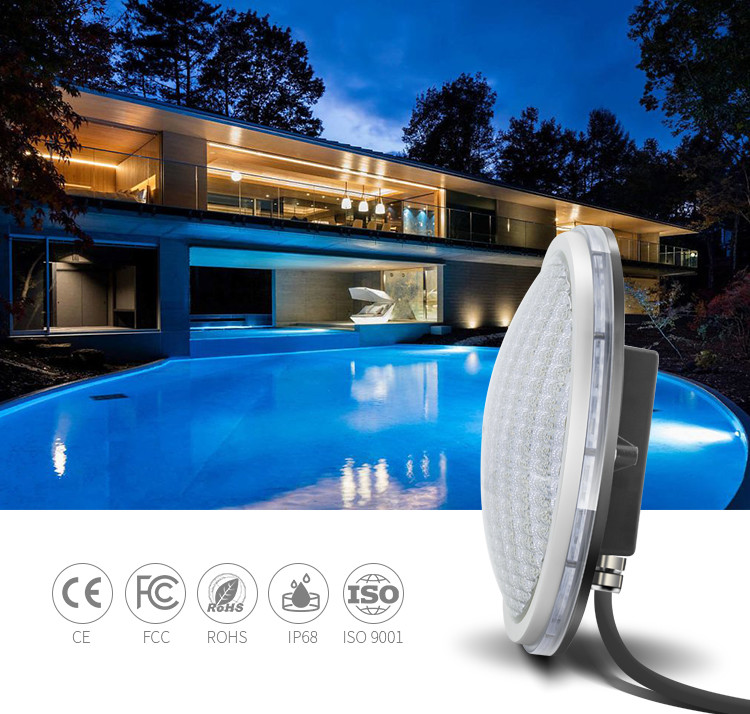

Application
Swimming pool lights ABS widely used in swimming pools, Plastic
film pools, glass fiber pools,.
Bath pools, hot spring pools and other underwater lighting.
Packing List
| packing/ shipping | Lamp sizeInner box dimension | 185×185×118 mm |
| N.W. / pc | 580g |
| G.W. / pc | 680g |
| Carton dimension | 570×396×410mm |
| Qty. / ctn. | 30PCS/Car |
| G.W. / ctn. | 22Kg |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email, we will give priority to your
inquiry.
2.Q:Why choose your factory?
We in led pool lighting over 13years, We have own professional
R&D and production and sales team.
we are the only one China supplier who is listed in UL certificate
in Led Swimming pool light industry.
3. Q: Do you accept the OEM&ODM?
Yes, OEM or ODM service are available.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get
5.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
6.Q:How can i get my package?
After we send the products,12-24hours we will send tracking number
to you ,then you can track
your products on your local express website.
