Color Changing Par 56 waterproof lights for swimming pool GX16D RGB
IP68 Synchronous Control
Product details
1. UL Certified LED PAR56 pool bulb.
2. CD12 Die-cast aluminum material shell, great heat dissipation
through structure.
3. 8 hours aging testing, 30 steps quality inspections, assure the
great quality pool light.

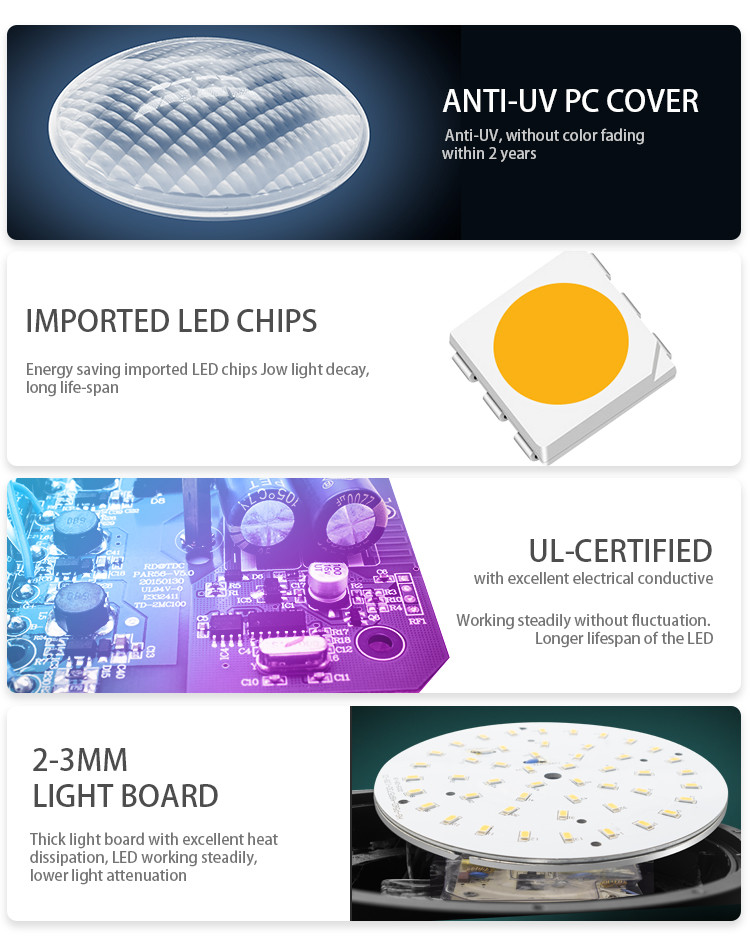

4. Aluminum material +ANTI UV PC cover, no yellowing or dazzling
for two years.
5. IP Rate: IP68 Structural waterproof.
Product Features
1. The copper GX16D base, great electrical conductivity.
2. Underwater pool light has GX16D fireproof plastic cable.
3. Same size as traditional PAR56 light, fully compatible with
GX16D swimming pool light.
4. Nickel-plated copper terminal block, E26 connector/GX16D
Connector.
5. High-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate..
6. IP68 par56 led lamp18 w gx16d adapted to American
lamps:pentair/AUSTRAL/Haywad etc.
Specification
| HG-P56-18W-B-RGB(GX16D-H)-T-UL |
| Lamp paramater | Material | Aluminum+Anti UV PC cover |
| Light dimension | Φ177×118mm |
| Input voltage | AC100-240V |
| Wattage | 17W±10％ |
| Light lumen | 520LM±10％ |
| Halogen replacement | / |
| Beam angle | 120° |
| BASE | GX16D |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | UL,CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 3 years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 62 | 65 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Color changing bulb par56 must be 8 hours aging test.
3.12v par56 smd led swimming pool lighting Finished products all passed 30 steps quality inspection.
4. Good looking stamping SS316 rivet screws, more stable, never
fall off.
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. IP68 structure waterproof ,can long time use underwater.
LED salt water pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
led salt water pool light application :Concrete pool ,Vinyl pool
,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.
led salt water pool light construction drawing
Packing List
| Item | HG-P56-18W-B-RGB(GX16D-H)-T-UL LED pool lighting |
| Product weight | 800G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 26.8KG |
