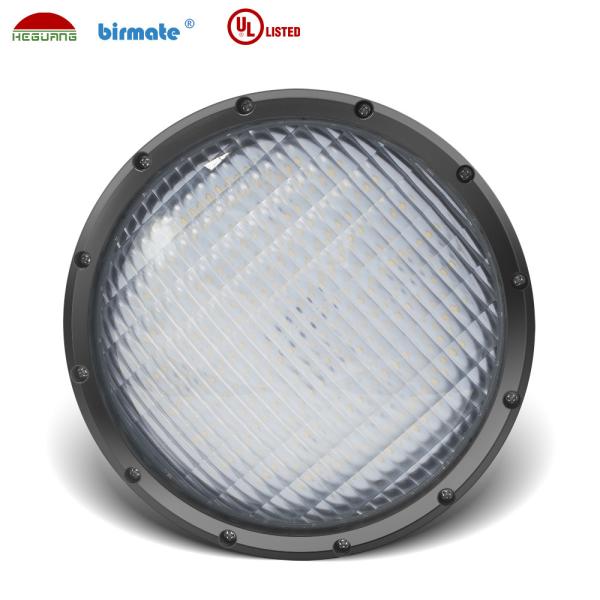

20 Watt GX16D Niche Jandy Par 56 IP68 underwater Spot pools
swimming outdoor
Product details
1. Anti-UV transparent PC cover, won't turn yellow within 2 years.
2. Constant current driver, comply with CE & EMC standard.
3. Aluminum material +ANTI UV PC cover, no yellowing or dazzling
for two years.
4. IP Rate: IP68 Structural waterproof.
5. This model must assemble to IP68 Niche/Housing.
Product Features
1. 12v pool light bulb with GX16D fireproof plastic cable.
2. Multiple wattage options from 12W-70W.
3. Constant current power driver, EMC anti-interference circuit.
4. 2-3MM aluminum light board for excellent heat dissipation,
2.0W/(m.k) Thermal conductivity.
5. LED pool light wall recessed adapted to American lamps:
pentair/AUSTRAL/Haywad etc.
6. 2 year warranty.
Specification
| HG-P56-20W-B(GX16D-H) |
| Lamp paramater | Material | Aluminum+Anti UV PC cover |
| Light dimension | Φ177×118mm |
| Input voltage | AC100-240V |
| Wattage | 21W±10％ |
| Light lumen | 1800LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | E26 |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | UL.CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 65 | 67 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Niche led pool light must be 8 hours aging test.
3. IP68 led pool lighting finished products all passed 30 steps quality inspection
4. Good looking stamping SS316 rivet screws, more stable ,never
fall off
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. IP68 structure waterproof, can long time use underwater.

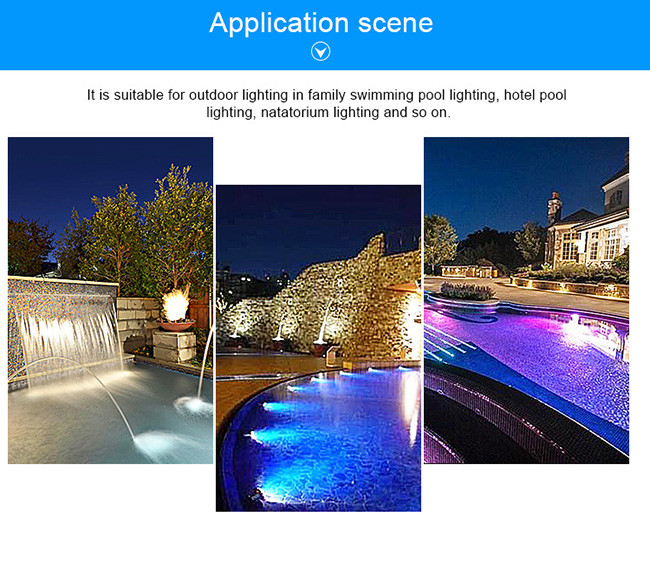

Application
led salt water pool light application: Concrete pool,Vinyl pool
,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.
led salt water pool light construction drawing
Packing List
| Item | HG-P56-20W-B(GX16D-H) LED pool lighting |
| Product weight | 800G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 26.8KG |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us in your email so that we will give
priority to your inquiry .
2.Q:Why choose your factory?
We in led pool lighting over 10 years, We have own professional
R&D and production and sales team.
we are the only one China supplier who is listed in UL certificate
in Led Swimming pool light industry.
3. Q:Do you accept the OEM&ODM?
Yes,OEM or ODM service are available.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order, the cheaper price you will get
5.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
6.Q:how can i get my package?
After we send the products,12-24hours we will send tracking number
to you ,then you can track your products on your local express
website.
