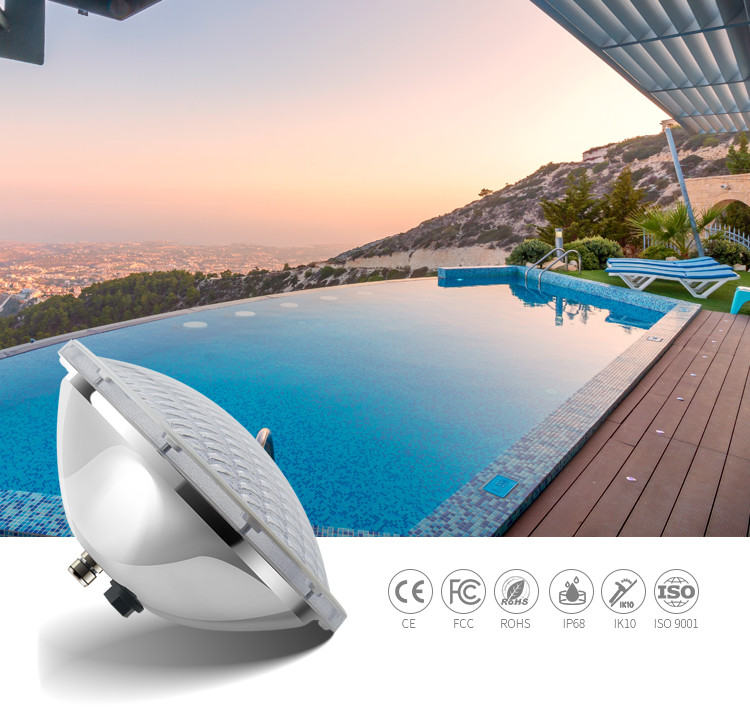

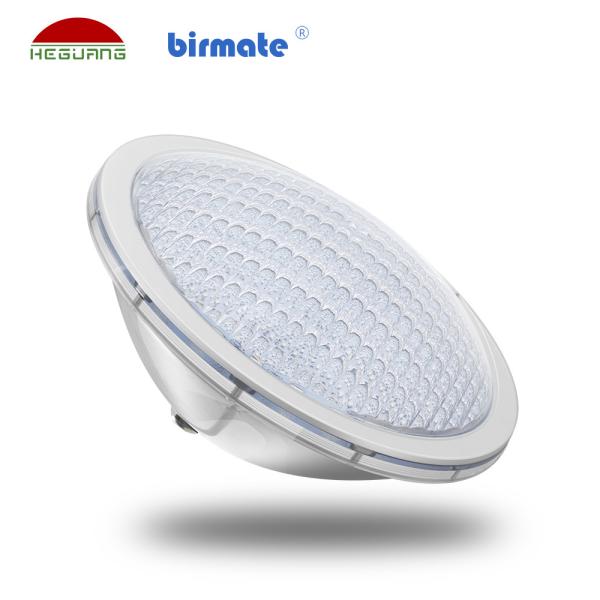

IP68 Structure Waterproof Stainless Steel Light Swimming Pool 12V
LED Pool Light Bulb RGB
Product Quick detail
1. Pool light bulb Anti-UV PC cover.
2. Power pass CE certified.
3. 316L stainless steel lamp body.
4. IP Rate: IP68 Structural waterproof.
5. 12v led pool light bulb has 316L Stainless steel +anti UV PC
cover.
6. Stainless steel light swimming pool body with stainless steel
316L material, strong anti-corrosion, 2 screws terminal or with 1M
cable.
Specification
| HG-P56-18W-C-RGB-T/HG-P56-18W-C-RGB-K |
| Lamp paramater | Material | SS316L + Anti-UV PC cover |
| Light dimension | Φ177×102mm |
| Input voltage | AC12V |
| Wattage | 17W±10％ |
| Light lumen | 520LM±10％ |
| Beam angle | 120° |
| BASE | two screws terminal |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220 coil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 69 | 72 |
Product features
1. Twin posts, not easy to loose.
2. Pool led lights 18w with 4 layers waterproof.
3. IP68 Structural waterproof, no yellowing or dazzling for two
years.
4. Constant current power driver, EMC anti-interference circuit.
5. LED pool light rgb fully match the market's conventional PAR56
lamps, replacing halogen.
6. 12V par56 pool light bulb use anti UV PC cover, Uniform light,
no yellowing or dazzling for two years.
Advantage
1. PC material LED lens with bracket,high heat resistance.
2. PAR56 pool light pass UL approval for some models.
3. Constant current power supply driver, EMC anti-interference
circuit.
4. swimming pool light bulb assembly with SS316 screws, more
durable.
5. IP68 structure waterproof, whithout glue filled, no color
temperature fading.
6. RGB led pool light diameter is about 177mm, can totally meet
various PAR56 housing/niche:
Pentair, Austra, Hayward,etc.
Application
LED pool lighting widely use in concrete pool, vinyl pool, the lamp
size can totally
match various Germany and US PAR56 housing/niches.
Packing List
| Item | HG-P56-18W-C-RGB-T LED pool lighting |
| Product weight | 950G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 20.6Kg |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
