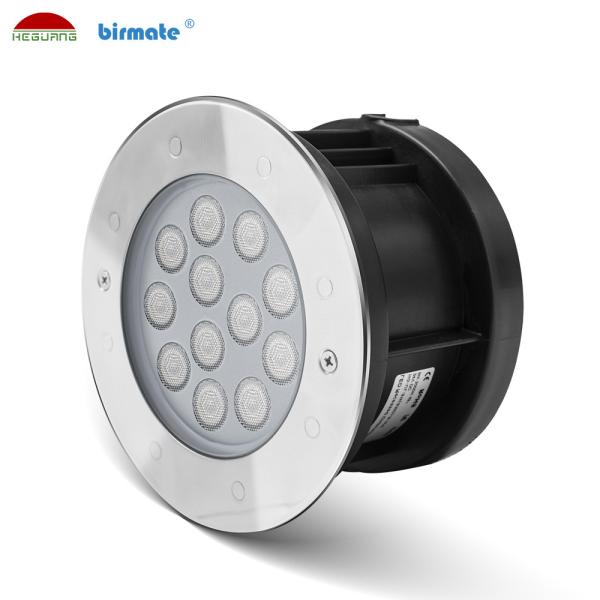

Small Pool Underwater Led Lights Dmx512 Muti Color SS316L 18W
Excessed Install
Product details
1. Working Voltage:DC24V input.
2. IP Rate: IP68 Structural waterproof.
3. Shinning angle : 30°, other options: 15°/45°/60°.
4. 316L Stainless steel material, super good anti-corrosion.
5. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
6. RGB external control and DMX512 control are the best selling
control in Heguang.
Product Features
1. 316L Stainless steel material ,strong anti-corrosion ability.
2. Muti color led pool light adjustable angle, adding bracket means
never loose.
3. High quality wafer chip Low light decay / long life / low energy
consumption.
4. Customized IP68 waterproof nickel plated brass design,good
anti-corrosion.
5. Integrated bead lens with uniform lighting, no dazzling,light
transmittance ＞85%.
6. CREE brand lamp beads, SMD3030 and SMD3535, super high
brightness, high display means Ra≥80.
Specification
| HG-UL-18W-SMD-R-RGB-D |
| Parameter | Material | 316L Stainless steel material +Anti UV PC |
| Working voltage | DC24V |
| Wattage/Light lumen | 17W±10%/600LM±10％ |
| Color | White/Red/Green/Blue/RGB |
| IP Rank | IP68 |
| Product Size | 98X118mm |
| Certificated | FCC,CE, RoHS,IK10,IP68 |
| Operating Temperature (℃) | -20~40℃ |
| Chip | 3535RGB Led |
| Control Way | DMX512 RGB Control |
| warranty | 2 year |
| Packing | 20pcs/Carton |
| test Site | Underwater test lighting time(Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 55 | 59 | 64 | 70 | 60 | 65 | 72 | 75 |
| LED | Beam angle | 120° |
| working temperature | -20～40℃ |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof ,can long time use under water.
3. SS316L pool lights Finished products all passed 30 steps quality
inspection.
4. Good looking stamping SS316 rivet screws,more stable ,never fall
off.
5. Good looking with rivet screw and cover nut assembly,longer
lifespan.
6. Pool light muti color must be 8 hours aging test and provide 2
Years warranty.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth ,8 hours LED agening test,100%
inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
Packing List
| Item | HG-UL-18W-SMD-R-RGB-D |
| Product weight | 900G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
