Product details
1. Installation method:recessed install.
2. LED pool light underwater IP Rank: IP68 waterproof.
3. Shinning angle: 30°, other options: 15°/45°/60°.
4. 316L Stainless steel material , super good anti-corrosion.
5. LED Color&Contro Way: RGB color with Extenal control.
6. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional)
| HG-UL-3W-SMD-R-RGB-X |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×88mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 3W±1W Epistar |
| Light lumen | 90LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2,
external controller (can get the RGB color changing synchronous) 4
wires |
| 3.RGB synchronous control design,2 wires connection 4, automatic
changing 2 wires |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 60 | 45 | 58 | 65 | 70 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Under led light finished products all passed 30 steps quality
inspection.
3. Good looking stamping SS316 rivet screws,more stable, never fall
off.
4. Good looking with rivet screw and cover nut assembly,longer
lifespan.
5. RGB swimming pool light Must be 8 hours aging test and provide 2
Years warranty.
6. Thickened aluminum board :2-3mm, better heat dissipation with
the conductivity: 2.0W/(m.k).
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.

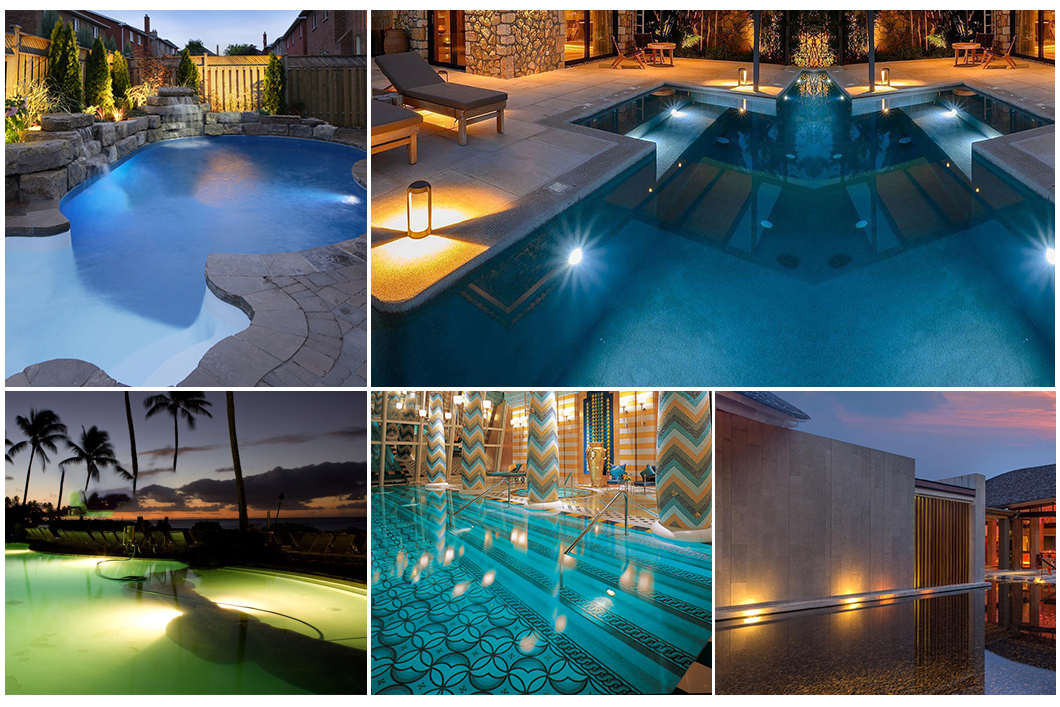

Application
IP68 led pool bulbe widely used in cement swimming pools, hot spring pools, garden
pools
and other underwater lighting.
What information should I let you know when I want to make a
inquiry?
1.What color do you want?
2.Which voltage ( low voltage or high voltage)?
3.What kind of beam angle did you need?
4.How many quantity do you need?
5.What material do you need?
