Pure White 24V Underwater Pool Light Fixture 316L Stainless Steel
Shinning Angle 30°
Product details
1. Working Voltage:DC24V input.
2. IP Rank: IP68 waterproof.
3. Shinning angle : 30°, other options: 15°/45°/60°.
4. 316L Stainless steel material ,strong anti-corrosion ability.
5. Waterproof swimming pool light use VDE standard outlet: standard
cable length is 1 meter.
6. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional)
Specification
| HG-UL-5W-SMD-R |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×88mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 5W±1W CREE |
| Light lumen | 450LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% |
| Warm White:3000K±10% Costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 53 | 45 | 58 | 62 | 62 |
Product Features
1. 316L Stainless steel material, super good anti-corrosion.
2. Customized IP68 waterproof nickel plated brass design, good
anti-corrosion.
3. Integrated bead lens with uniform lighting, no dazzling,light
transmittance ＞85%.
4. RGB three-channel circuit design, universal RGB four-wire
external controller, using DC24V power input
5. IK10 8mm transparent tempered glass,light transmittance ＞90%, no
effect with the LED color temperature.
6. Underwater pool light bulb use VDE waterproof cable with rubber
sleeve,resistant voltage 2000V,
temperature resistance at -40℃ to 90℃.
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof ,can long time use under water.
3. Good looking stamping SS316 rivet screws,more stable ,never fall
off.
4. Good looking with rivet screw and cover nut assembly,longer
lifespan.
5. Water in pool light housing finished products all passed 30
steps quality inspection
6. Runderwater pool light fixture Must be 8 hours aging test and
provide 2 Years warranty.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.

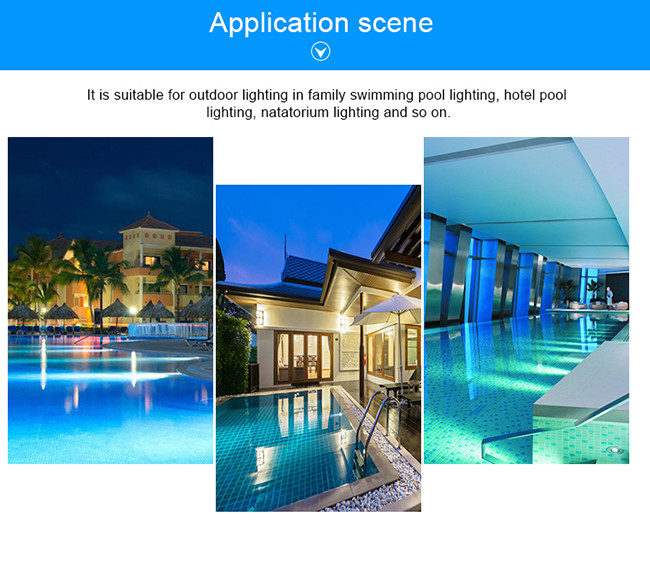

Application
Pool light bulb swimming widely used in cement swimming pools, hot spring pools, garden pools and
other underwater lighting.
Packing List
| Item | HG-UL-5W-SMD-R |
| Product weight | 510G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
