Product details
1. Private Mode products, support ODM&OEM.

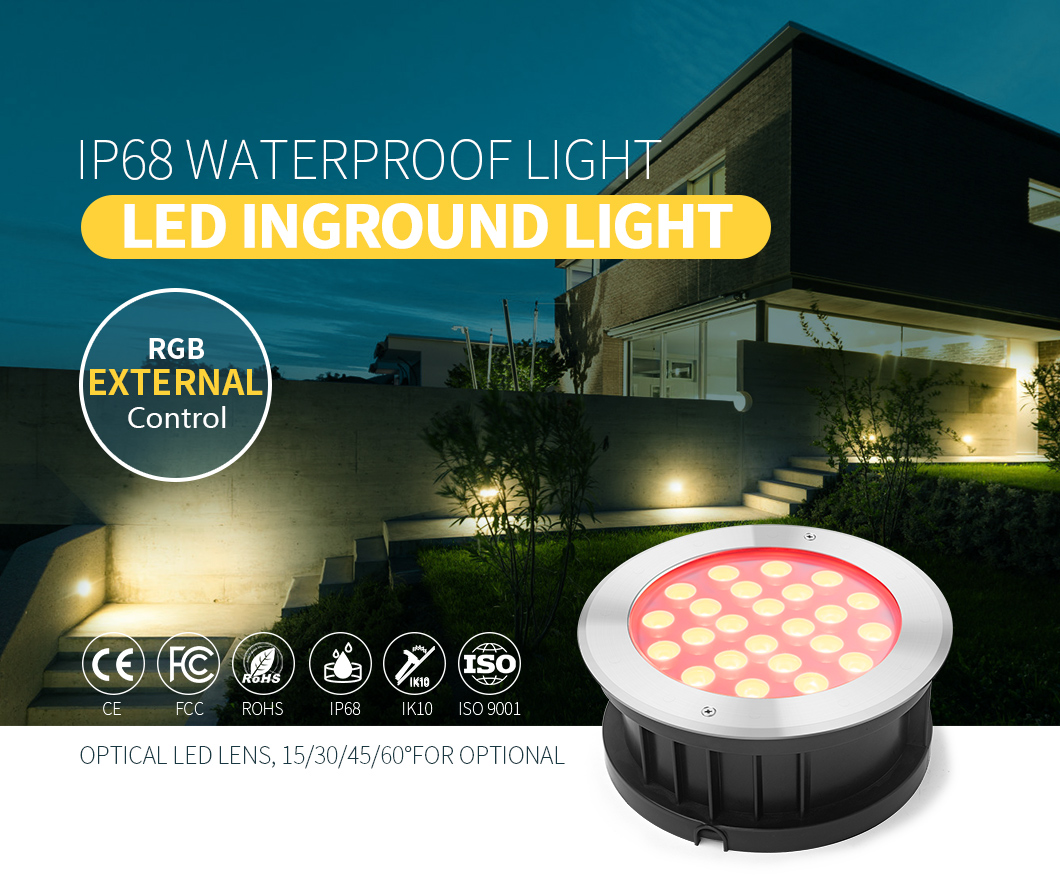

2. Optical LED lens, 15/30/45/60°for optional.
3. 8.0mmTempered glass transparent cover, thickness.
4. 316L Stainless steel material, super good anti-corrosion.
5. 316 screws are riveted on the surface cover, good looking and
won't loosen.
6. RGB external control and DMX512 control are the best selling
control in Heguang.
Specification
| HG-UL-18W-SMD-G-RGB-X |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ220×93mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 18W±10% Epistar |
| Light lumen | 900LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color | RGB(DMX512/External /Wifi control) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Ground lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2,
external controller (can get the RGB color changing synchronous) 4
wires |
|
| Test position | LED Grond light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| land test(Min) | 480 | 480 |
| LED edge temperature(℃) | 77 | 84 |
Product Features
1. Waterproof wire design ,prevent the water into the wire.
2. Outdoor inground lights with Constant current power supply
driver.
3. Customized IP68 waterproof nickel plated brass design, good
anti-corrosion.
4. Thickened aluminum board: 2-3mm, super good heat dissipation,
heat conductivity: 2.0W/(m.k).
5. LED ground light outdoor are IP68 structure waterproof, can long
time use under water.
6. IK10 8mm transparent tempered glass, light transmittance ＞90%,
no effect with the LED color temperature.
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Good looking stamping SS316 rivet screws, more stable, never
fall off.
3. Low voltage rgb led in ground well lights must be 8 hours aging
test and provide 2 Years warranty.
4. Waterproof ip68 ground light finished products all passed 30
steps quality inspection.
5. Thickened aluminum board: 2-3mm, better heat dissipation with
the conductivity: 2.0W/(m.k).
LED Ground light all passed 30 steps quality control, 100%
waterproof at 10m depth, 8 hours LED aging test,100% inspection
before deliver.
Application
Inground spot light widely used as garden, community, lawn, park
and other landscape lighting.
Some tips for you
Q1: How to choose the right LED energy saving lamps?
B:Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
B:Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
B:Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center
temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light
board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
