CREE / EDISON Source Led Swimming Pool Lights Inground IP68
Waterproof 6 Watt
Product details
1. Working voltage: DC24V input.
2. IP Rank: IP68 waterproof.
3. SS316L material, strong anti-corrosion ability.
4. VDE standard outlet: standard cable length is 1 meter.
5. LED Color: Pure White: 6500±10% Warm White:3000K±10% costomized.
6. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional)
Specification
| HG-UL-5W(SMD)(24V)-G |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×88mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 5W±1W CREE |
| Light lumen | 450LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| Test position | LED Grond light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| land test(Min) | 480 | 480 |
| LED edge temperature(℃) | 60 | 75 |
Product Features
1. Constant current power supply driver.
2. inground light stainless is waterproof wire design ,prevent the
water into the wire.
3. Integrated bead lens with uniform lighting, no dazzling, light
transmittance ＞85%
4. Thickened aluminum board: 2-3mm,super good heat dissipation,
heat conductivity: 2.0W/(m.k)
5. IK10 8mm transparent tempered glass, light transmittance ＞90%,
no effect with the LED color temperature.
6. CREE LED chips,RA ≥80, gold wire welding,EMC and ceramic make
the heat dissipation faster,
assure the longer lifespan of LED.
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Good looking stamping SS316 rivet screws, more stable, never
fall off.
3. Above ground led lights Finished products all passed 30 steps
quality inspection.
4. Underwater pool lights for above ground pool must be 8 hours
aging test and provide 2 Years warranty.
5. Thickened aluminum board: 2-3mm, better heat dissipation with
the conductivity: 2.0W/(m.k),
LED Ground light all passed 30 steps quality control , 100%
waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.

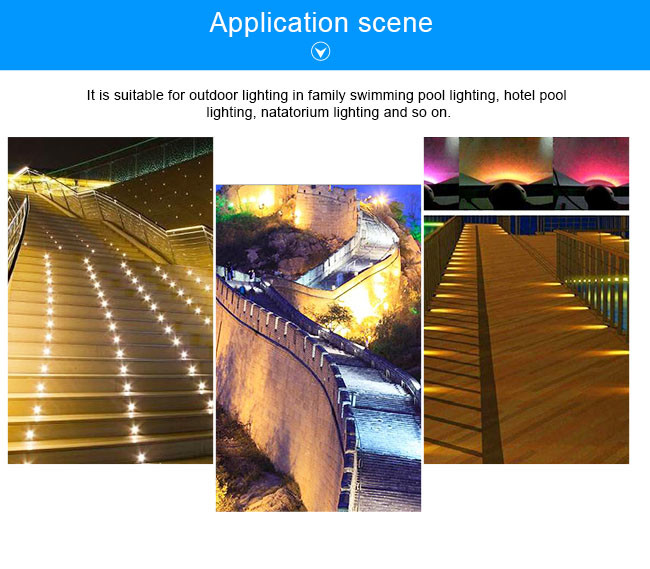

Application
IP68 Led Ground light Widely used as garden, community, lawn, park
and other landscape lighting
Packing List
| Item | HG-UL-5W-SMD-G |
| Product weight | 510G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us directly or leave us the messge ,we will give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get
them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable.
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control
,external control ,wifi control ,DMX512 control,etc.
