Product details

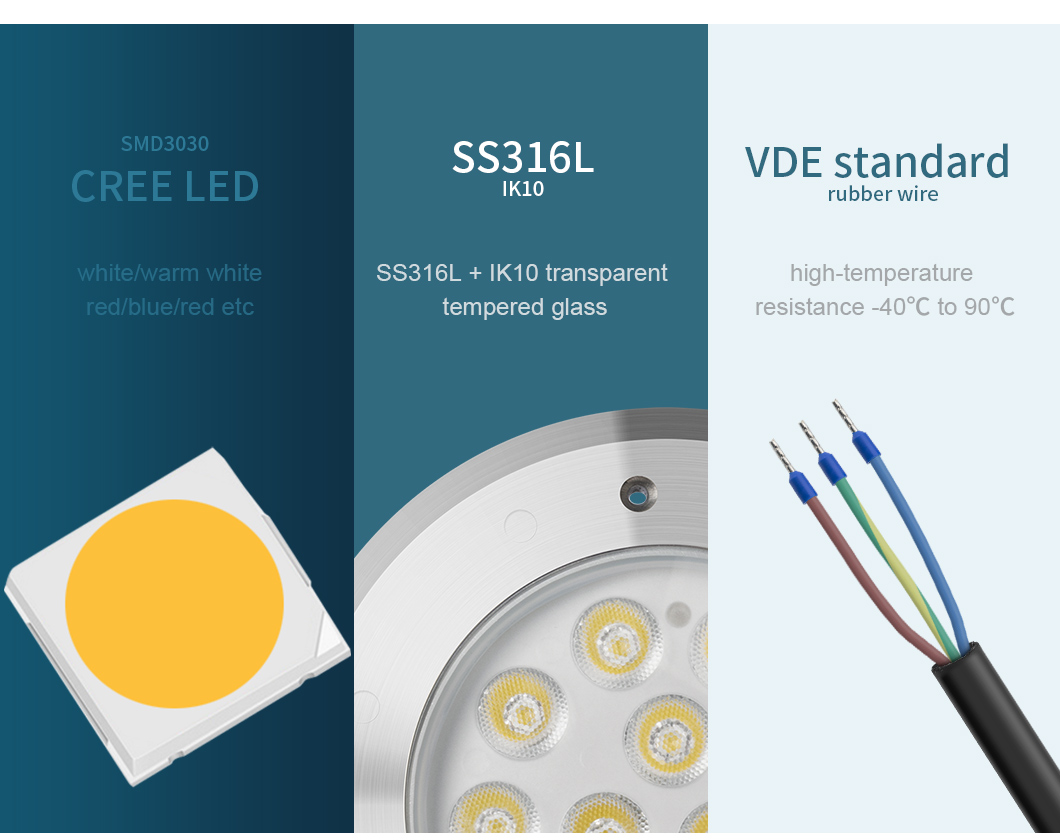

1. LED Color: White/Red/Green/Blue.
2. pool underwater led light use Cree Led Chip.
3. Private Mode products,Support ODM&OEM.
4. Material: 316L Stainless steel material, super good
anti-corrosion.
5. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
6. Jandy white led pool light use VDE standard outlet: standard
cable length is 1 meter.
| HG-UL-12W-SMD |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×156.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 12W±10% CREE |
| Light lumen | 1100LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
|
| Wave Length (nm) | R: 620-630nm |
| G:515-525nm |
| B:460-470nm |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| packing/ shipping | Lamp sizeInner box dimension | 160×160×110mm |
| N.W. / pc | 890g |
| G.W. / pc | 1020g |
| Carton dimension | 820×340×250mm |
| Qty. / ctn. | 20PCS/CTN |
| G.W. / ctn. | 21.66Kg |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 55 | 59 | 64 | 70 | 64 | 64 | 70 | 7 |
Product Features
1. Integrated bead lens with uniform lighting ,no dazzling,light
transmittance ＞85%.
2. High quality wafer chip Low light decay / long life / low energy
consumption.
3. Waterproof led lights for pools adjustable angle, adding
bracket means never loose.
4. IK10 8mm transparent tempered glass,light transmittance ＞90%, no
effect with the LED
color temperature.
5. Low voltage constant current power supply drive,efficiency ＞90%,
make sure the LED is
constant current working,the input voltage change no effect with
the LED lifespan.
6. LED swimming pool light bulb use VDE waterproof cable with
rubber sleeve, resistant
voltage 2000V,temperature resistance at -40℃ to 90℃.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method, widely used in garden pool, square
pool, hotel pool, fountain and other underwater lighting.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
