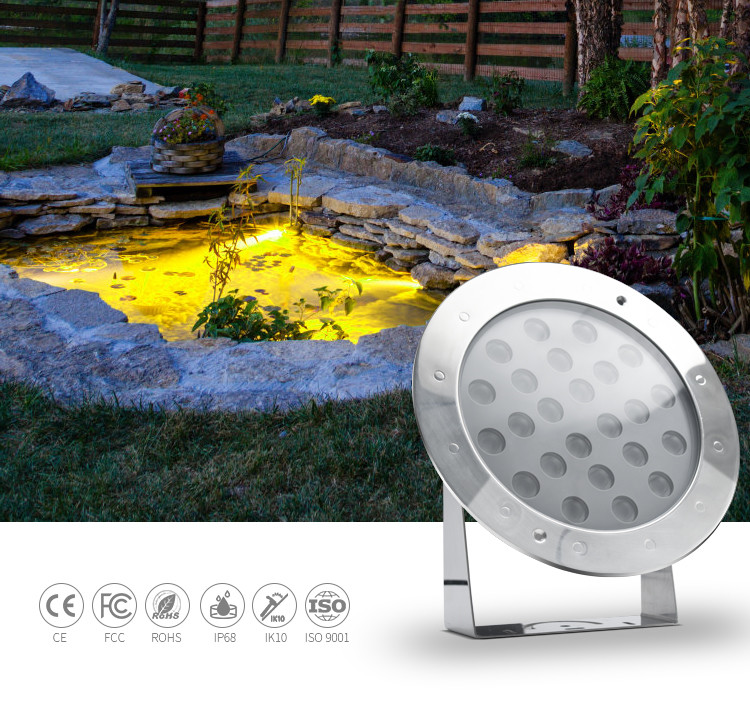

Color Changing Underwater Led Lights DMX512 Control 36W Aluminum
Lamp Body
Product details
1. Private Mode products, support ODM&OEM.
2. 316L Stainless steel material, super good anti-corrosion.
3. LED Color/Color temperature/Installation method:recessed
install.
4. RGB external control and DMX512 control are the best selling
control in Heguang.
5. Colour changing swimming pool lights with controller use VDE
standard outlet: standard cable length is 1 meter.
Product Features
1. Voltage change no effect with the LED lifespan.
2. 316L Stainless steel material, super good anti-corrosion.
3. Customized IP68 waterproof nickel plated brass design, good
anti-corrosion.
4. High quality wafer chip Low light decay / long life / low energy
consumption.
5. 36W Swimming Pool light adjustable angle, adding bracket means
never loose.
6. Low voltage constant current power supply drive,efficiency ＞90%,
make sure the LED is constant current working,the input.
7. RGB three-channel circuit design, universal RGB four-wire
external controller, using DC24V power input.
Specification
| HG-UL-36W-SMD-RGB-D/HG-UL-36W-SMD-RGB-X |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ220×225mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 35W±10% CREE |
| Light lumen | 1200LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Wave Length (nm) | R: 620-630nm |
| G:515-525nm |
| B:460-470nm |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 48 | 50 | 51 | 51 | 60 | 61 | 63 | 63 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Good looking stamping SS316 rivet screws,more stable ,never fall
off.
3. Good looking with rivet screw and cover nut assembly, longer
lifespan.
4. Color changing swimming pool light must be 8 hours aging test
and provide 2 Years warranty.
5. 35w led swimming pool light with controle finished products all
passed 30 steps quality inspection.
6. Swimming pool rope light is IP68 structure waterproof, can long
time use under water.
LED underwater pool light all passed 30 steps quality control, 100%
waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.

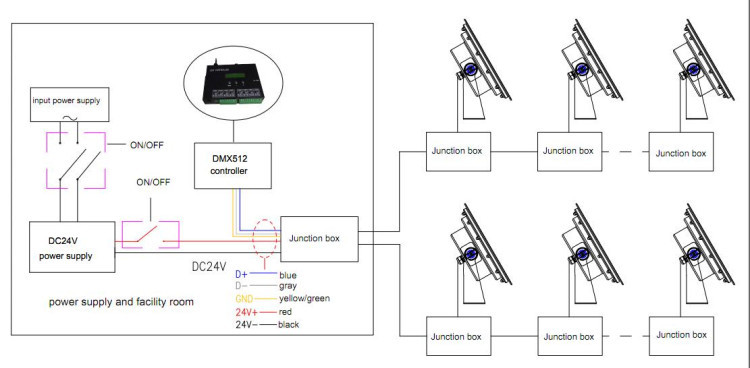

DMX512 Control Connection
Packing List
| Item | HG-UL-36W-SMD-RGB-D/HG-UL-36W-SMD-RGB-D |
| Product weight | 1800G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order, the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention.
It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier,
it can plus 8pcs amplifier. Totally the quantity of led par56 lamp
is 100pcs.
And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
