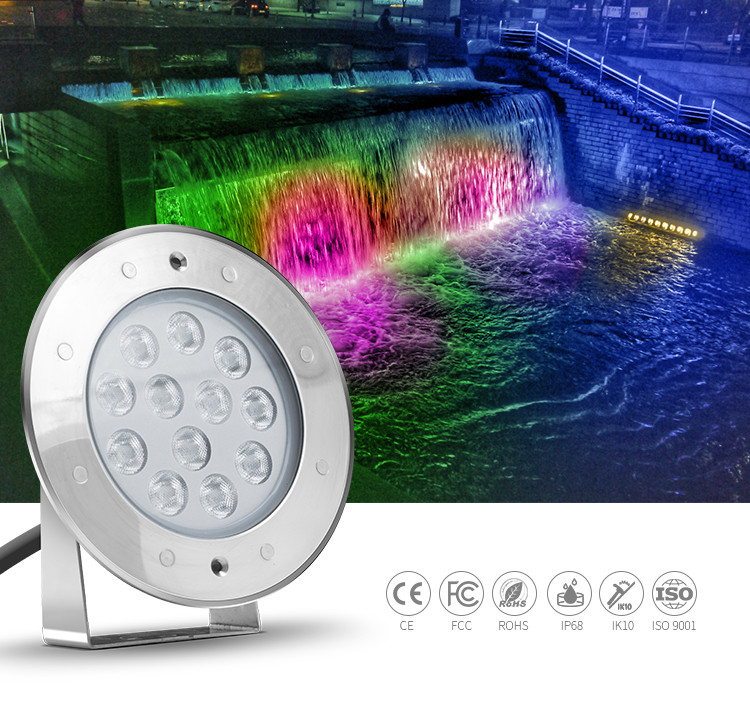

DMX512 Control 9 Watt Underwater Led Pond Lights , Color Changing
Led Pool Lights
Product details
1. LED Color: White/Red/Green/Blue/RGB.
2. 8.0mmTempered glass transparent cover, thickness.
3. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
4. IP68 rgb underwater led pool light with VDE standard outlet:
standard cable length is 1 meter.
5. RGB external control and DMX512 control are the best selling
control in Heguang.
Specification
| HG-UL-9W-SMD-RGB-D |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×156.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W Epistar |
| Light lumen | 380LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Warranty | 2Years |
| packing | Carton dimension | 820×340×250mm |
| Qty. / ctn. | 20PCS/CTN |
| G.W. / ctn. | 21.66Kg |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 59 | 45 | 58 | 62 | 68 |
Product Features
1. 316L Stainless steel material ,super good anti-corrosion.
2. Underwater led lights 12v adjustable angle, adding bracket means
never loose.
3. CREE brand lamp beads, super high brightness, high display means
Ra≥80.
4. Low voltage constant current power supply drive, efficiency
＞90%, make sure the LED is constant current working,
the input voltage change no effect with the LED lifespan.
5. 9w smart rgb cct led pool underwater light with VDE waterproof
cable with rubber sleeve, resistant voltage 2000V, temperature
resistance at -40℃ to 90℃.
Advantage
1. IP68 structure waterproof ,can long time use under water.
2. Reliable quality with 100% 10m depth waterproof test.
3. Good looking stamping SS316 rivet screws,more stable, never fall
off.
4. Good looking with rivet screw and cover nut assembly, longer
lifespan.
5. RGB led underwater lights must be 8 hours aging test and provide
2 Years warranty.
6. Underwater rgb led lights with controle finished products all
passed 30 steps quality inspection.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
Connection&Installtion
Packing List
| Item | HG-UL-9W(SMD)-RGB-D |
| Product weight | 900G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier,
it can plus 8pcs amplifier. Totally the quantity of led par56 lamp
is 100pcs. And RGB Synchronous controller is 1 pcs,
amplifier is 8pcs.
