Product details
1. Light led swimming pool use Cree Led Chip.
2. 316L Stainless steel material, super good anti-corrosion.
3. Shinning angle : 30°,other options: 15°/45°/60°.
4. 8.0mmTempered glass transparent cover, thickness.
5. RGB external control and DMX512 control are the best selling
control in Heguang.
6. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
Product Features
1. Adjustable angle, adding bracket means never loose.
2. Customized IP68 waterproof nickel plated brass design, good
anti-corrosion.
3. CREE brand lamp beads, super high brightness, high display means
Ra≥80.
4. VDE waterproof cable with rubber sleeve, resistant voltage
2000V, temperature resistance at -40℃ to 90℃.

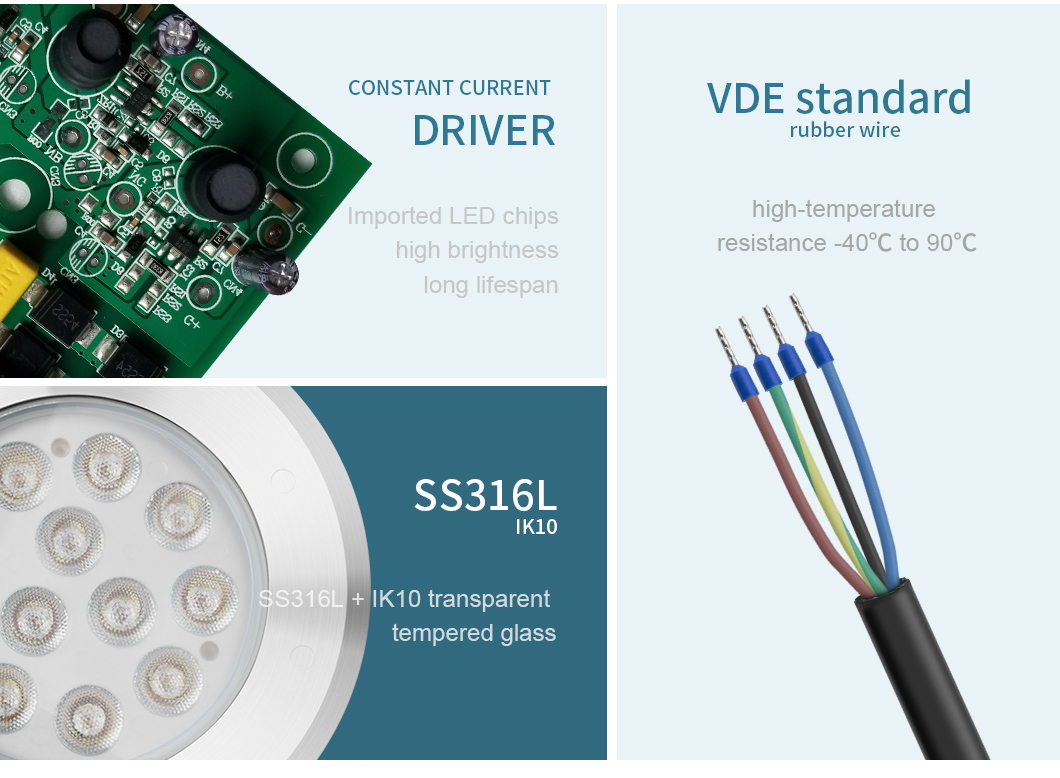

5. RGB three-channel circuit design, universal RGB four-wire
external controller, using DC24V power input.
6. Stainless steel pool light with VDE waterproof cable with rubber
sleeve, resistant voltage 2000V, temperature resistance at -40℃ to
90℃.
| HG-UL-9W-SMD-RGB-X |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×156.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W Epistar |
| Light lumen | 380LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| Test position | LED Underwater light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 59 | 68 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof ,can long time use under water.
3. Good looking stamping SS316 rivet screws,more stable, never fall
off.
4. Good looking with rivet screw and cover nut assembly, longer
lifespan.
5. Pool led lights underwater finished products all passed 30 steps
quality inspection.
6. LED underwater light for swimming pool must be 8 hours aging
test and provide 2 Years warranty.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,8 hours LED
aging test,100% inspection before deliver.

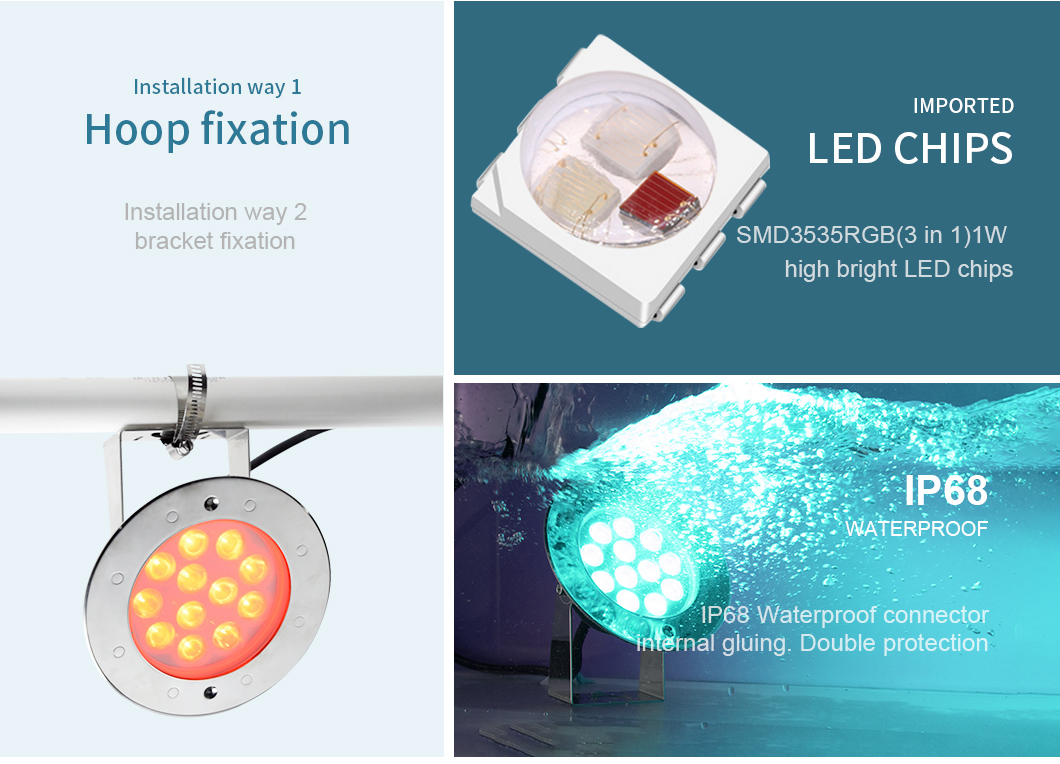

Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding
installation method, widely used in garden pool, square pool, hotel
pool, fountain and other underwater lighting.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
