Product details

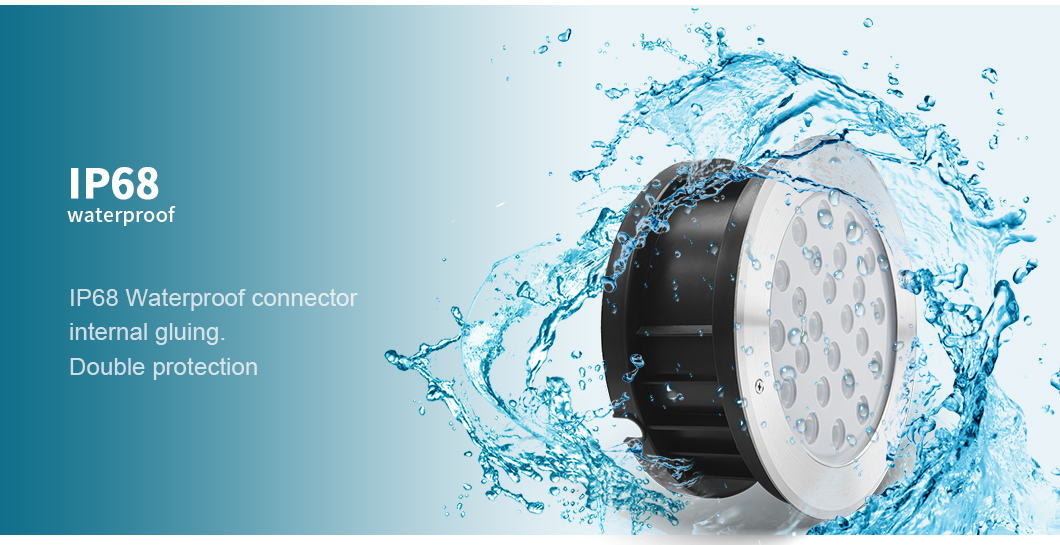

1. IP Rate: IP68 Structural waterproof.
2. Shinning angle : 30°, other options: 15°/45°/60°.
3. Underwater recessed light are 316L Stainless steel material
,super good anti-corrosion.
4. 316L Stainless steel +Tempered glass cover cover,no yellowing or
dazzling for two years.
5. RGB external control and DMX512 control are the best selling
control in Heguang.
| HG-UL-36W-SMD-R |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ220×93mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 36W±10% |
| Light lumen | 3200LM±10％ |
| LED Chip: | CREE 24PCS |
| Beam angle | Beam angle:15°/30°/45°/60° |
| CCT | Pure White: 6500±10% |
| Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Packing | Lamp sizeInner box dimension | 230×230×118mm |
| N.W. / pc | 1700g |
| G.W. / pc | 1920g |
| Carton dimension | 480×245×500mm |
| Qty. / ctn. | 8PCS/CTN |
| G.W. / ctn. | 16.56Kg |
| LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| 48 | 50 | 51 | 51 | 60 | 61 | 63 | 63 |
Product Features
1. 316L Stainless steel material ,super good anti-corrosion.

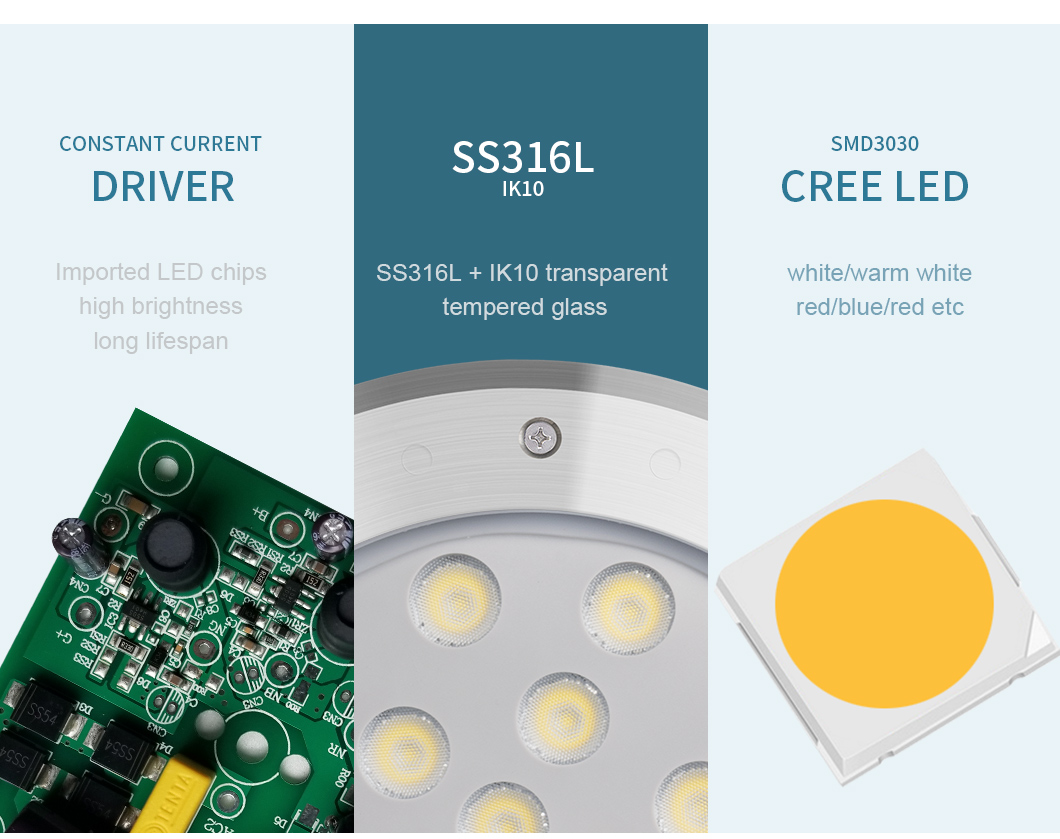

2. Low voltage constant current power supply drive, efficiency
＞90%.
3. Customized IP68 waterproof nickel plated brass design,good
anti-corrosion.
4. RGB three-channel circuit design, universal RGB four-wire
external controller, using DC24V power input.
5. VDE waterproof cable with rubber sleeve,resistant voltage 2000V,
temperature resistance at -40℃ to 90℃.
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof ,can long time use under water.
3. Good looking stamping SS316 rivet screws,more stable, never fall
off
4. Good looking with rivet screw and cover nut assembly,longer
lifespan.
5. 12v rgb swimming pool lights Finished products all passed 30
steps quality inspection.
6. Swimming pool window light 12v must be 8 hours aging test and
provide 2 Years warranty.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth ,8 hours LED aging test,100% inspection before deliver.
Application
widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
