Product features
1. Full inspection and shipment of finished products.
2. Constant current driver, it can work steadily at high
temperature.
3. High-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate.
4. Die-casting aluminum lamp body, fast heat dissipation to make
LED more durable.
5. Mini swimming pool with Nickel-plated copper E26 base with
excellent electrical conductive.
6. High Power high bright LED chip.
7. Finished product passed 30 steps quality inspection.
Specification
| HG-P56-18W-B(E26-L)-UL |
Parameter | Material | Aluminum+anti UV PC cover. |
| Working voltage | AC/DC12V |
| Wattage/Light lumen | 18W/1700LM±10％ |
| CCT | Pure White: 6500K±10% Warm White:3000K±10% costomized |
| LED Color | White/Red/Green/Blue |

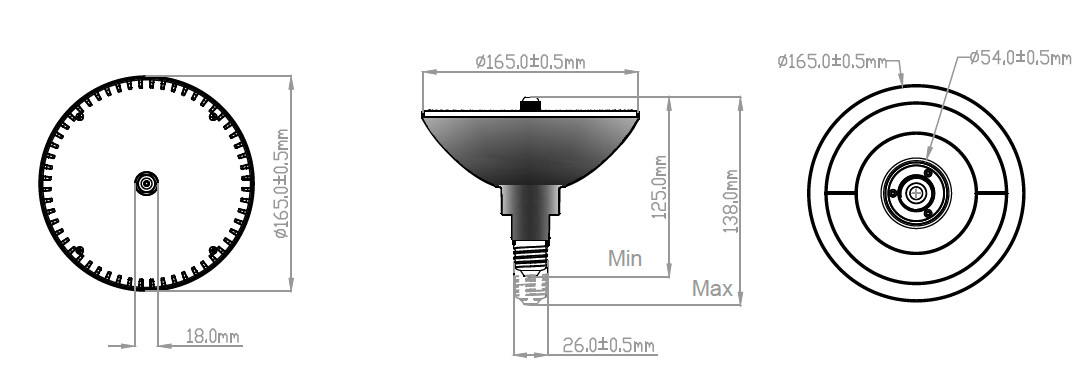

| Product Size | Φ165×125-138mm |
| Working temperature | -20～40℃ |
| Quantity | 198PCS |
| Certificate | FCC,CE, RoHS,UL |
| G.W | 22.5Kg |
| test Site | Underwater test lighting time(Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 45 | 52 | 56 | 62 | 51 | 55 | 61 | 65 |
| LED | Beam angle | 120° |
| working temperature | -20～40℃ |
Application
LED salt water pool light application: Concrete pool, Vinyl pool,
Outdoor Swimming Pool,family pool, hotel
pool, underwater etc.
LED salt water pool light all passed 30 steps quality control, 8
hours LED aging test,100% inspection before deliver.
Some tips for you
Q1: How to choose the right LED energy saving lamps?
B:Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
B:Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
B:Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center
temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of
light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate
is less than three per thousand .
