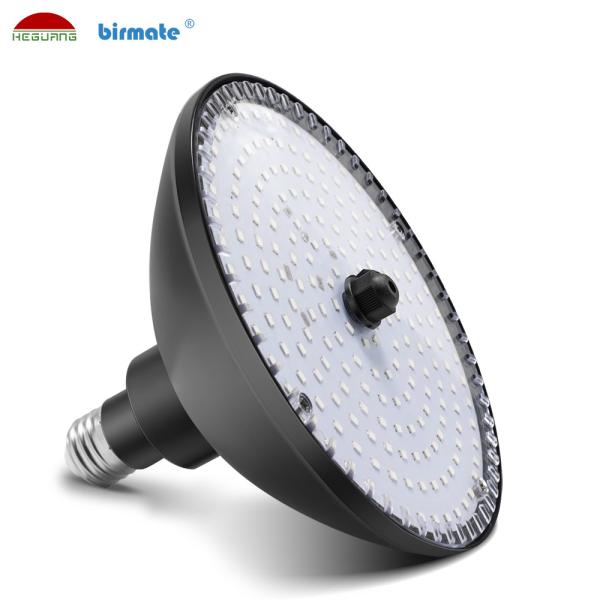

E26 E27 PAR56 LED Underwater Lamps , IP68 120V Waterproof Lights
For Swimming Pool
Product features
1. Aluminum material +ANTI UV PC cover,no yellowing or dazzling for
two years.
2. Pools Swimming is 100% water tested at a depth of 10m, with
reliable performance.
3. Die-casting aluminum lamp body, heat fast make LED more durable.
4. Light led pool Same size with the traditional PAR56, can totally
match the PAR56-GX16D niches.
5. High-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate.
Specification
| HG-P56-105S5-B(E26-H)-UL |
| Lamp paramater | Material | Aluminum+Anti UV PC cover |
| Light dimension | Φ165×125-138mm |
| Input voltage | AC100-240V |
| Wattage | 18W±10％ |
| Light lumen | 1400LM±10％ |
| Halogen replacement | 120W |
| Beam angle | 120° |
| BASE | E26 |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | UL,CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 62 | 65 |
Product Size
Application
led salt water pool light application: Concrete pool, Vinyl pool,
Outdoor Swimming Pool, family pool,
hotel pool , underwater etc.
Advantage
1. High Power high bright LED chip.
2. Weather resistance, aging resistance.
3. Swimming pool cover need to test 8 hours LED agening test.
4. Finished product passed 30 steps quality inspection.
5. 316L stainless steel lamp cup, stronger corrosion resistance,
Installtion
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
