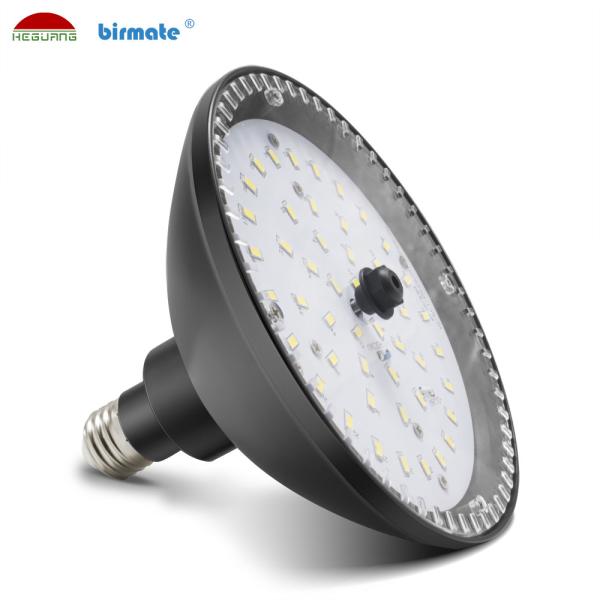

IP68 20W Color Changing Pool Light , Wall Mounted Swimming Pool
Lights PAR56 E26
Product features
1. Nickel-plated copper E26 base with excellent electrical
conductive.
2. Constant current driver, it can work steadily at high
temperature.
3. Die-casting aluminum lamp body, fast heat dissipation to make
LED more durable.
4. Pools swimming outdoor apply for Hayward, Pentair, Jandy brand
and several size fixtures.
5. Adjustable height to dissipate the heat through structure.
Specification
| Product Item:HG-P56-20W-B(E26-H) |
Parameter | Material | Aluminum+anti UV PC cover. |
| Working voltage | AC100-240V |
| Wattage | 21W±10％ |
| Color temperature | Pure White: 6500K±10% Warm White:3000K±10% costomized |
| Light lument | 1800LM±10％ |
| Product Size | Φ165×125-138mm |
| Working temperature | -20～40℃ |
inner box size | 185×185×160 mm |
| Quantity | 48pcs |
| Certificate | FCC,CE, RoHS |
Angle | 120° |
| N.W | 850g |
| packing | 20PCS/Car |
| warranty | 3 year |
| test Site | Underwater test lighting time(Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 45 | 52 | 56 | 63 | 51 | 55 | 63 | 65 |
| LED | Beam angle | 120° |
| working temperature | -20～40℃ |

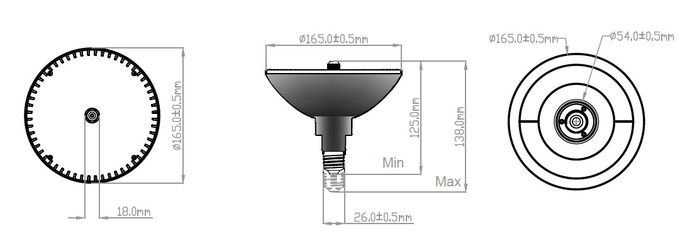

Product Size
Application
led salt water pool light application: Concrete pool, Vinyl pool,
Outdoor Swimming Pool,
family pool, hotel pool, underwater etc.
Advantage
1. High Power high bright LED chip.
2. swimming pool tile with eather resistance, aging resistance.
3. swimming pool chair need to test 8 hours LED agening test.
4. Multiple wattage options from 12W-70W.
5. Finished product passed 30 steps quality inspection.
6. 316L stainless steel lamp cup, stronger corrosion resistance,
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center temperature at the LED bottom of
light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
