Product features
1. 8 hours aging testing, 30 steps quality inspections, assure the
great quality pool light.
2.Constant current driver, comply with CE & EMC standard.
3.Connected 2 screw terminals, never loose.
4. Heguang Lighting patented product have been passed UL
certificate.
5. Same size with the traditional PAR56, can totally match the
Par56 niches.
Specification
| HG-P56-20W-C-UL |
Parameter | Material | 316L Stainless steel +anti UV PC cover. |
| Working voltage | AC12V /DC12V |
| Wattage/Light lumen | 21W±10％ 1800LM±10％ |
| Color | White/Red/Green/Blue |
| IP rate | IP68 (With Sealed Housing ) |
| Product Size | Φ177×102mm |
| Chip | SMD5730 |
| CCT | Pure White: 6500K±10% Warm White:3000K±10% costomized |
| Certificated | UL,FCC,CE, RoHS,IP68 |
| Carton size | 630×410×410 mm |
| test Site | Underwater test lighting time(Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 45 | 55 | 63 | 67 | 51 | 62 | 67 | 70 |
| LED | Beam angle | 120° |
| working temperature | -20～40℃ |
Product Size
Application
Swimming pool led application: Concrete pool, Vinyl pool, Outdoor
Swimming Pool,family pool, hotel pool, underwater etc.

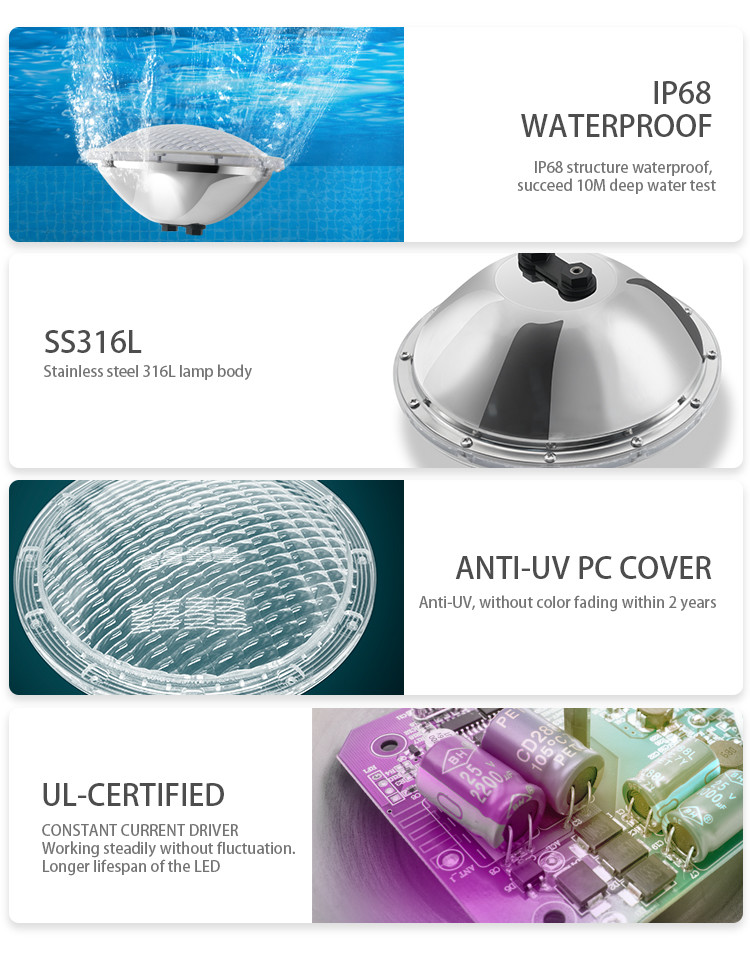

Advantage
1. High Power high bright LED chip.
2. Jandy par56 pool with eather resistance, aging resistance.
3. spa swimming pool need to test 8 hours LED agening test.
4. Finished product passed 30 steps quality inspection.
5. Backyard swimming pool get UL approval for some models.
6. 316L Stainless steel material with bracket lens, high
temperature and heat resistance.
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center temperature at the LED bottom of
light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
