DMX512 Control 24W Color Changing SS316L Underwater Spot Light IP68
Product details
1. IP Rate: IP68 Structural waterproof.
2. Shinning angle : 30°, other options: 15°/45°/60°.
3. 8.0mmTempered glass transparent cover, thickness.
4. DMX512 Spot light are 316L Stainless steel material, super good
anti-corrosion.
5. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
6. LED aqua lighting led underwater light with VDE standard outlet:
standard cable length is 1 meter.
Specification
| HG-UL-24W-SMD-RGB-D-12V |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ220×225mm |
| Input voltage | DC12V/AC12V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 23W±10% |
| Light lumen | 900LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB synchronous control /DMX512/External /Wifi control |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| packing/ shipping | Lamp sizeInner box dimension | 230×230×118mm |
| N.W. / pc | 1750g |
| G.W. / pc | 1970g |
| G.W. / ctn. | 17.0Kg |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2,
external controller (can get the RGB color changing synchronous) 4
wires 3.RGB synchronous control design,2 wires connection |
|
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 47 | 48 | 48 | 57 | 61 | 62 | 62 |

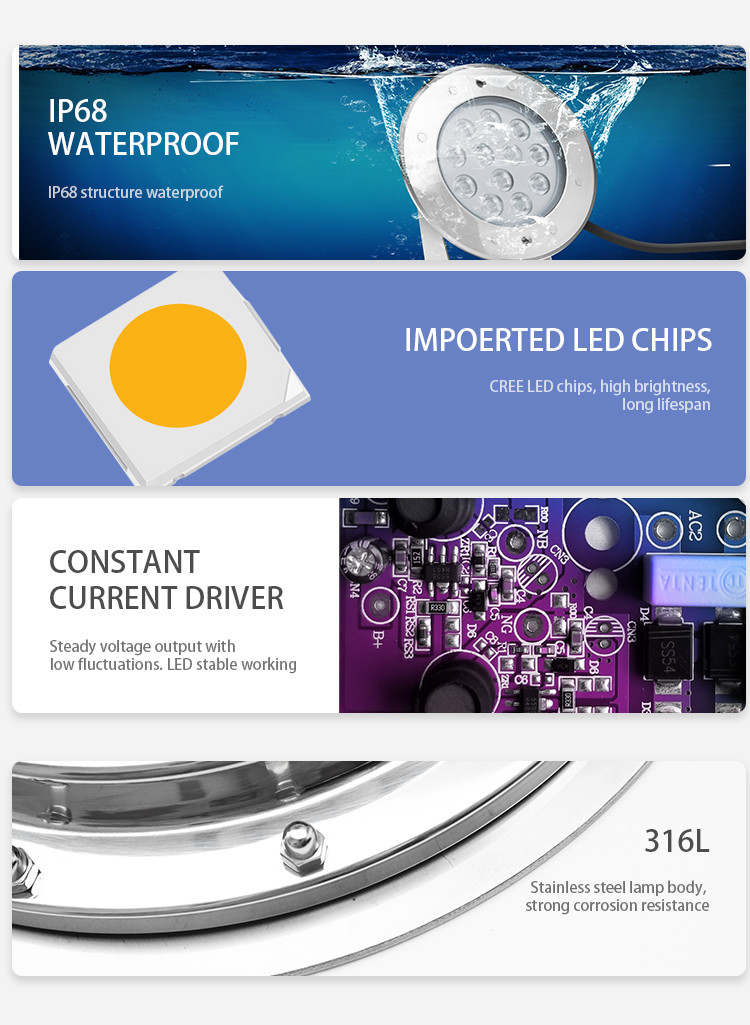

Product Features
1. 316L Stainless steel material, strong anti-corrosion ability.
2. High quality wafer chip Low light decay / long life / low energy
consumption.
3. Customized IP68 waterproof nickel plated brass design,good
anti-corrosion.
4. IK10 8mm transparent tempered glass, light transmittance ＞90%,
no effect with the LED color temperature.
5. DMX512 underwater light with VDE waterproof cable with rubber
sleeve, resistant voltage 2000V,
temperature resistance at -40℃ to 90℃.
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Above ground pool must be 8 hours aging test and provide 2 Years
warranty.
3. SS316L underwater light finished products all passed 30 steps
quality inspection.
4. Good looking stamping SS316 rivet screws,more stable, never fall
off.
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. IP68 structure waterproof, can long time use under water.
LED underwater pool light all passed 30 steps quality control, 100%
waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding
installation method, widely used in garden pool, square pool, hotel
pool, fountain and other underwater lighting.
_
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center temperature at the LED bottom of
light board should be ≤ 80 ℃.
Q4: Why choose us?
1. All lamps are self-developed patent products.
2. High quality driver of lamps to ensure the long lifespan.
3. Lower wattage with high Lumen and more energy-efficient.
4. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
5. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
